    INC 110 Tilt Sensor

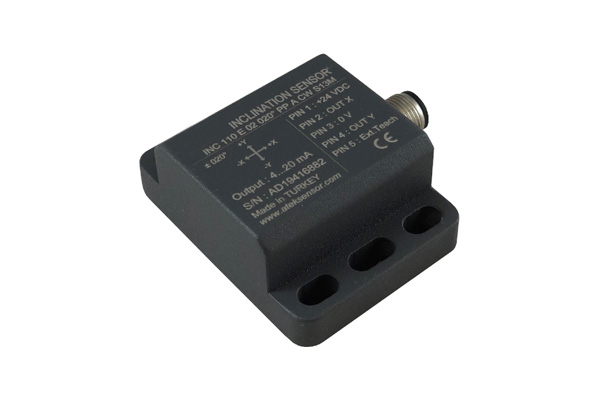

    The INC 110 Tilt Sensor provides high-precision tilt measurement with an accuracy of ±0.1°. It features compensated axis sensitivity and is housed in a small and durable rectangular metal body.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    INC 110 TILT SENSOR

    The INC 110 Tilt Sensor has a ±90° two-axis measurement range or a 0-360° single-axis measurement range option.

    It offers 4-20 mA, 0-10V, or CANopen signal output options.

    It features compensated axis sensitivity.

    High precision: ±0.1° accuracy.

    It has the ability to define the 0° point.

    Easy to install.

    It has an IP67 high protection class rating.

    It features a small and sturdy metal body.

    It has a compact design.

    Resolution For analog models: 12 bit, For CANopen models: 0.05°
    Operating Temperature -30...+70 °C
    Electrical Connection For analog models: M12 5-pin (male) connector or wired, For CANopen models: M12 5-pin (male) and M1
    Supply Voltage For 4-20 mA & CANopen output models: 12…24 VDC, For 0-10 VDC output models: 15…24 VDC
