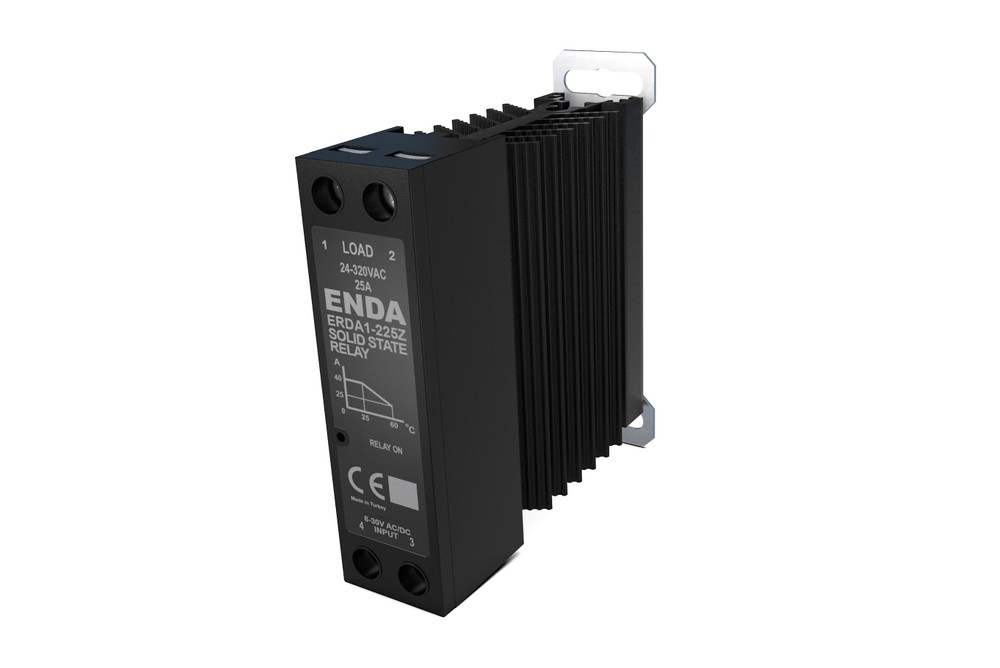

    ERDA1

    Emos Group Industrial Electronics Industrial Automation and Control Solid State Relays ERDA1
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    ERDA1

    Phase: Single-phase Input Voltage: 8-30V AC/DC Load Voltage: 24-320V AC or 50-480V AC

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ERDA1

    25 and 40A AC load current

    320V AC or 480V AC load voltage

    8-30V AC/DC input voltage

    LED indicator for input voltage

    Switching at zero-crossing of AC voltage

    Applicable to three-phase loads

    Varistor protection for peak voltages

    Ambient/Storage Temperature -25...60 ºC / -30...100 ºC
    Relative Humidity Up to 50% at 40 ºC, increasing linearly to 90% at 20 ºC
    Protection Class According to EN 60529 standard: IP20
    Altitude Maximum 1000m
    Input Voltage 8-30V AC/DC
    Activation Voltage >6V AC/DC
    Cut-off Voltage <2V AC/DC
    Input Current <17mA AC / 10mA DC
    Activation Time Max. ½ Period
    Cut-off Time Max. ½ Period
    LED Indicator LED lights when activation voltage > 6V AC/DC
    Load Current (Arms) ERDA1-225Z: 25
    ERDA1-240Z: 40
    ERDA1-425Z: 25
    ERDA1-440Z: 40
    Load Voltage (Vrms) ERDA1-225Z and ERDA1-240Z: 24-320
    ERDA1-425Z and ERDA1-440Z: 50-480
    Frequency (Hz) 50-60
    Mounting Type Mounted on TH35 type rail
    Dimensions ERDA1-225Z and ERDA1-425Z: W24xH84xD97 mm
    ERDA1-240Z and ERDA1-440Z: W30xH84xD115 mm
    Weight ERDA1-225Z and ERDA1-425Z: 203g (with packaging)
    ERDA1-240Z and ERDA1-440Z: 280g (with packaging)
    Enclosure Material Self-extinguishing plastics used
