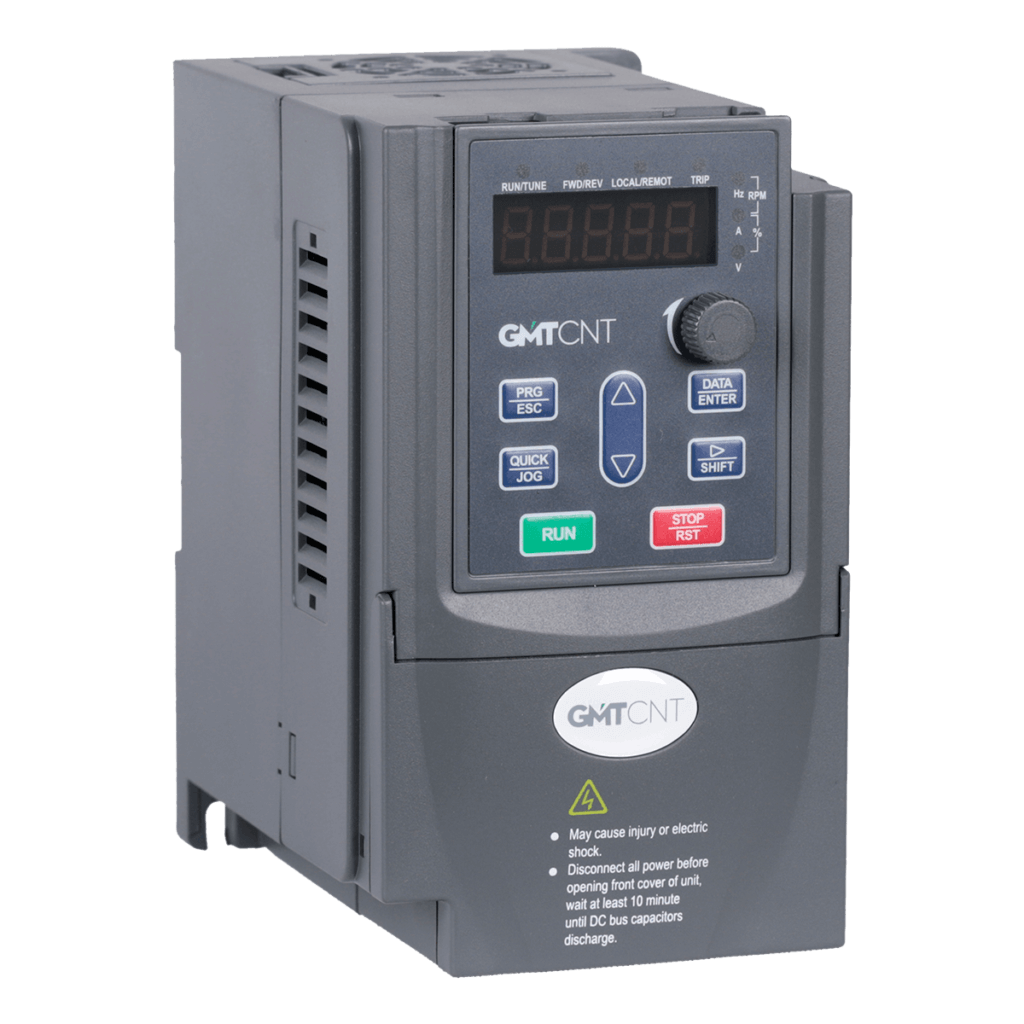

    SPIN 0.75 kW~110 kW

    Offers V/F and vector control within voltage ranges of 200-450VDC (3x220VAC) and 300-900VDC (3x380VAC). Includes MPPT, dry running, water level protection, and low solar warning for solar applications. Provides energy efficiency with 7 digital inputs, 2 analog inputs/outputs, 2 relay outputs, Modbus RTU-supported RS485 port, and EMC filter.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    SPIN PUMP DRIVES

    Wide DC voltage ranges (min/max):

    - 200-450VDC (3x220VAC Pump)

    - 300-900VDC (3x380VAC Pump)

    V/F and vector control

    Solar pump special functions:

    - Built-in MPPT function

    - Dry running protection

    - Water level sensor protection

    - Low solar level warning

    7 programmable digital inputs

    2 programmable relay outputs

    RS485 communication port supporting Modbus RTU

    2 analog inputs 0-10 V / 0-20 mA

    Analog input for water source level

    2 analog outputs 0-10 V / 0-20 mA

    Built-in EMC filter for models above 37kW

    Automatic energy balancing with common DC Bus

    Supply Voltage 1x380VAC (Single-phase)
    Supply Frequency Between 47 Hz and 63 Hz
    Control Mode V/f control mode
    Frequency Range Between 0 Hz and 3000 Hz
    Adjustment Resolution Digital: 0.01 Hz, Analog: Maximum frequency / 2000
    Overload Current Ratio 150% for 60 seconds, 180% for 10 seconds, 200% for 3 seconds
    Acceleration and Deceleration Between 0.1 sec and 3600.0 sec
    Starting Torque 150% at 1 Hz
    DC Braking Yes
    PID Function Yes
    Communication RS-485 communication supporting standard MODBUS RTU protocol
    Digital Input 4 selectable PNP or NPN digital inputs
    Relay Output 1 programmable relay output
    Fast Pulse Input 1 fast pulse input
    Analog Input 1 selectable 4-20 mA or 0-10 V analog input
    Analog Output 1 programmable selectable 4-20 mA or 0-10 V analog output
    Operating Temperature -10°C to 40°C
    Storage Temperature -20°C to 60°C
    Humidity Under 90% RH, (without condensation)



    SPIN-00075H 110x185x153
    SPIN-00150H 110x185x153
    SPIN-00220H 110x185x153
