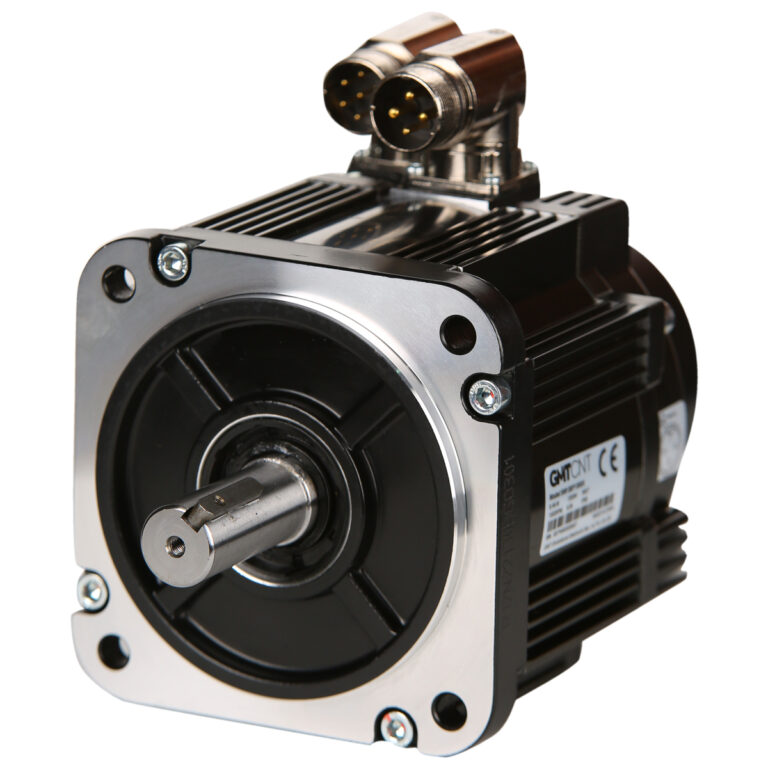

    SM130F1300X SERVO MOTOR

    SD Series Servo Systems provide solutions to machine manufacturers in industries such as testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with its compact design, Position/Speed/Torque control modes, and high performance.

    It is user-friendly with automatic motor recognition, USB port programming, and Easytune features. Single-phase 220V -15%~+10% 50/60HZ

    400W-1.8kW Power Range

    Position/Speed/Torque Control modes

    Transition capability between control modes

    Easy adjustment, control flexibility

    Automatic motor type detection

    Modbus/EtherCAT

    17bit / 23bit absolute encoder

    Built-in resistor

    Ability to adjust parameters via PC software or built-in keypad and display

    USB port for PC

    9 Digital inputs

    6 Digital outputs

    0-500kHz pulse input

    -10~+10VDC Analog Input

    Overcurrent, overvoltage, undervoltage, overheating, heavy load, encoder error, and overspeed protection functions

    Motor User Manual

    PC Software File

    Nominal Voltage (VAC) 200-220
    Nominal Power (W) 1300
    Nominal Torque (N.m) 8.4
    Peak Torque (N.m) 21
    Nominal Speed (rpm) 1500
    Peak Speed (rpm) 3000
    Nominal Current (Amp) 9.5
    Peak Current (Amp) 23.8
    Torque Constant (N.m/Amp) 0.88
    EMF Constant (V/krpm) 62.5
    Resistance (Ω) 0.56
    Inductance (mH) 3.4
    Inertia (kg*m²*10⁻⁴) 20.59
    Poles 10
    Encoder 23bit
    IP Rating IP65
    Weight (Kg) 7.5
