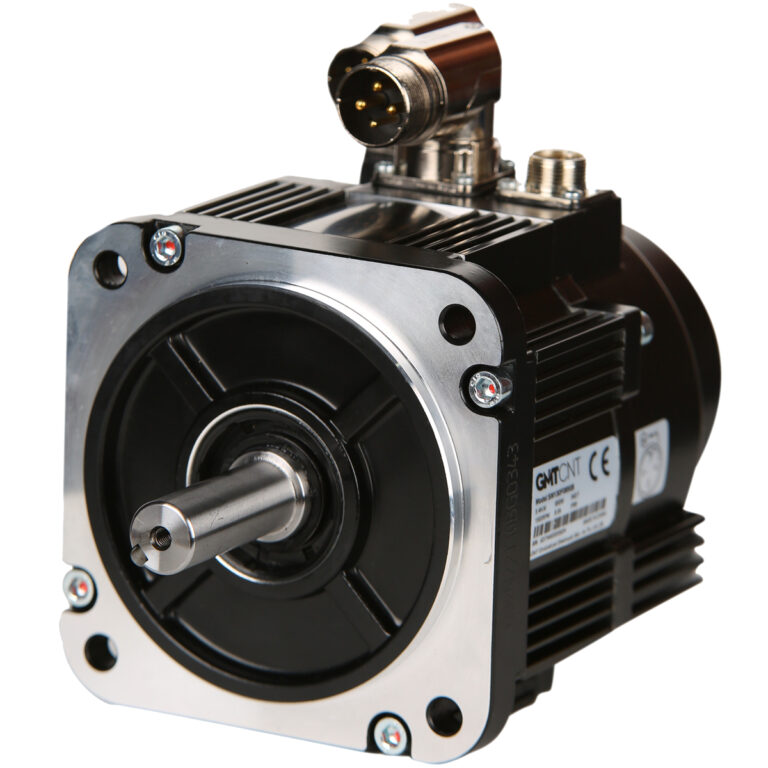

    SM130F0850B SERVO MOTOR

    SD Series Servo Systems provide solutions to machine manufacturers in industries such as testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with its compact design, Position/Speed/Torque control modes, and high performance.

    It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

    850W

    19mm shaft diameter

    130mm flange connection

    1500rpm

    23-bit Nikon encoder

    5.4Nm

    Nominal Voltage (VAC) 200-220
    Nominal Power (W) 850
    Nominal Torque (N.m) 5.4
    Peak Torque (N.m) 13.5
    Nominal Speed (rpm) 1500
    Peak Speed (rpm) 3000
    Nominal Current (Amp) 6.5
    Peak Current (Amp) 16.3
    Torque Constant (N.m/Amp) 0.84
    EMF Constant (V/krpm) 64
    Resistance (Ω) 5.7
    Inductance (mH) 12.5
    Inertia (kg*m²*10⁻⁴) 13.88
    Poles 10
    Encoder 23bit
    IP Rating IP65
    Weight (Kg) 6.9
