    SM130F1800B

    SM130F1800B Servo Motor with Brake delivers 1800W power and supports position, speed, and torque control modes with a 17/23-bit encoder for high performance. It features USB programming, Modbus/EtherCAT, and digital/analog input-output for parameter adjustments. Equipped with overcurrent, voltage, overheating, load, and speed protection functions, it ensures safe and reliable operation.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

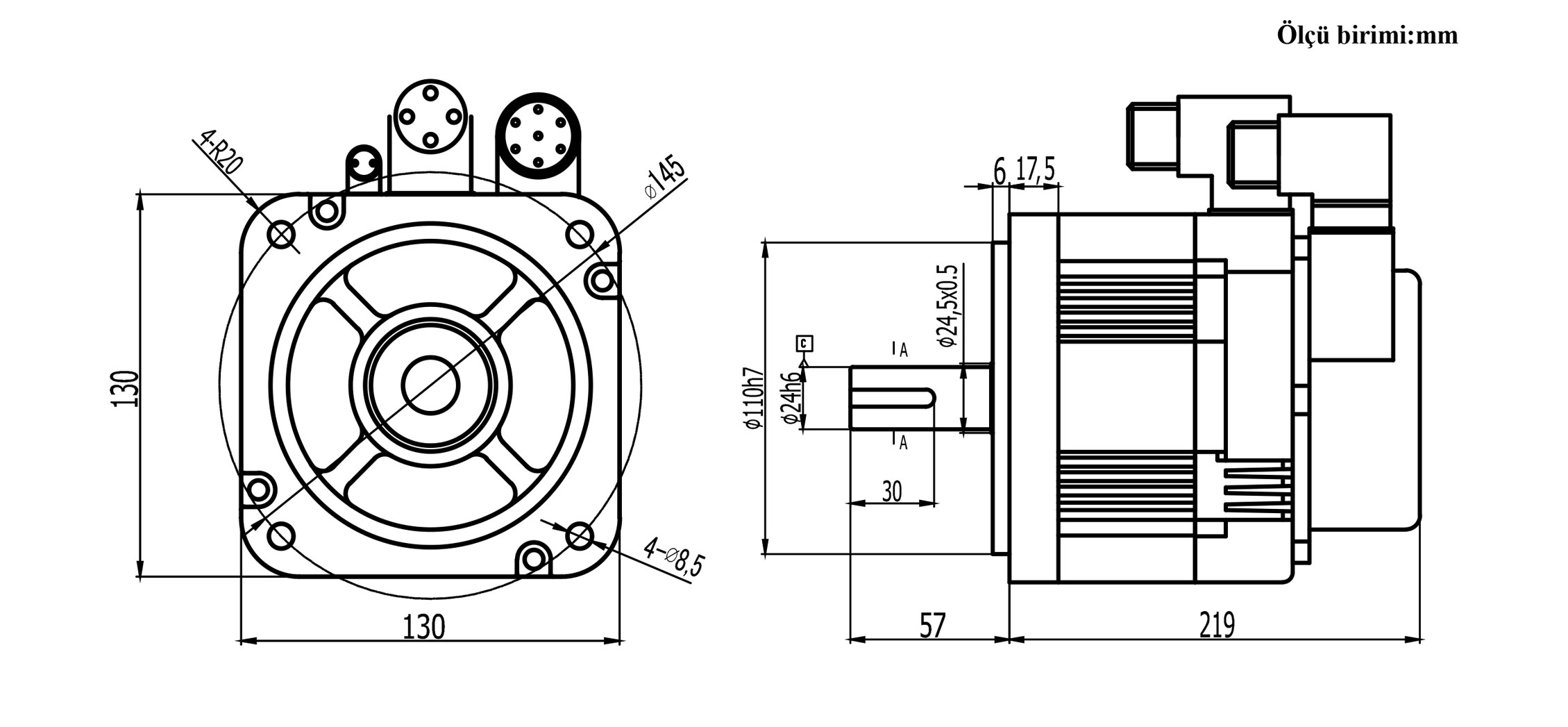

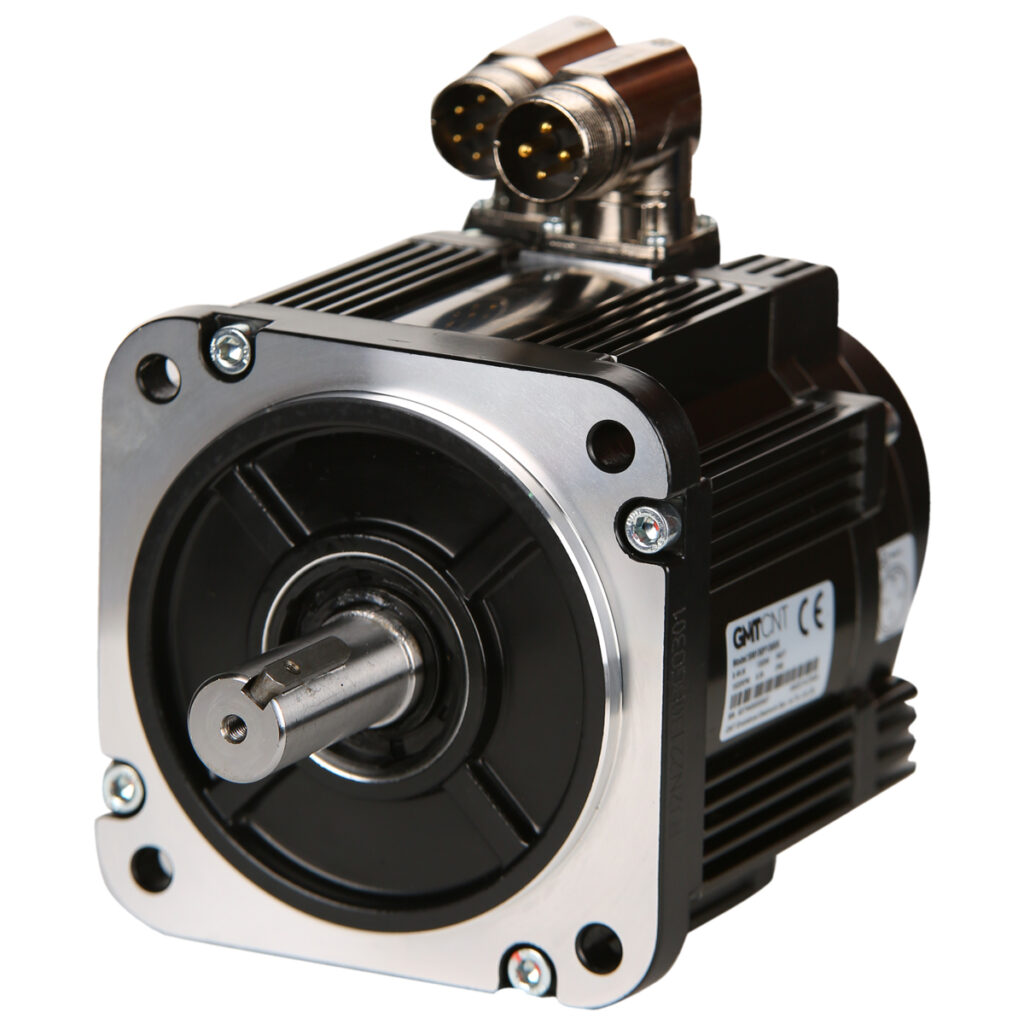

    SM130F1800B SERVO MOTOR WITH BRAKE

    SD Series Servo Systems offer solutions for machine manufacturers in industries such as testing devices, presses, cutting, filling, packaging, plastics, and food with their compact design, Position/Speed/Torque control modes, and high performance.

    It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

    Single-phase 220V -15%~+10% 50/60Hz

    1800W Power

    Position/Speed/Torque Control modes

    Control mode switching feature

    Easy adjustment, flexible control

    Automatic motor type detection

    Modbus/EtherCAT

    17-bit / 23-bit absolute encoder

    Built-in resistor

    Parameter adjustment via PC software or built-in keypad and display

    USB port for PC connection

    9 Digital inputs

    6 Digital outputs

    0-500kHz pulse input

    -10~+10VDC Analog Input

    Overcurrent, overvoltage, undervoltage, overheating, heavy load, encoder error, overspeed protection functions

    Nominal Voltage (VAC) 200-220
    Nominal Power (W) 1800
    Nominal Torque (N.m) 11.5
    Peak Torque (N.m) 34.5
    Nominal Speed (rpm) 1500
    Peak Speed (rpm) 2000
    Nominal Current (Amp) 9.0
    Peak Current (Amp) 28.4
    Torque Constant (N.m / Amp) 1.27
    EMF Constant (V / krpm) 87
    Resistance (Ω) 0.68 ± 10%
    Inductance (mH) 4.26 ± 20%
    Inertia (kg*m²*10⁻⁴) 30.15
    Poles 10
    Encoder 23 bit
    IP Class IP65
    Weight (Kg) 14.5
