    SD7RS07

    700W power, Modbus RTU/EtherCAT, Auto Tuning, fault analysis black box.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

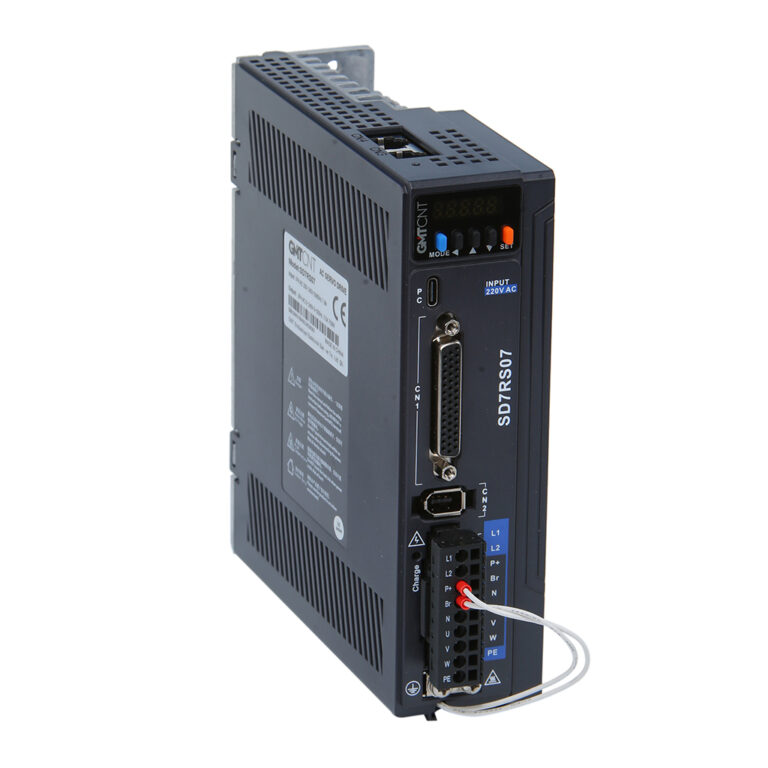

    SD7RS07 SERVO DRIVE

    SD Series Servo Systems provide solutions to machine manufacturers in industries such as testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with its compact design, Position/Speed/Torque control modes, and high performance. It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

    SD7 Servo Drives have the following key features:

    Single-phase 220V -15%~+10% 50/60HZ

    Three-phase 380V – 400V -15%~+10% 50/60HZ

    400W-7.5kW Power Range

    Position/Speed/Torque Control modes

    Transition capability between control modes

    Easy adjustment, control flexibility

    Automatic motor type detection

    Modbus RTU/EtherCAT

    23bit Absolute Encoder

    Built-in braking resistor

    Ability to adjust parameters via PC software or built-in keypad and display

    USB Type-C port for PC

    8 Digital inputs

    5 Digital outputs

    5V (500kHz) / 24V (200kHz)

    2 -10~+10VDC Analog Inputs

    1 -10~+10VDC Analog Output

    Auto Tuning

    Zero speed tracking function

    Black box function for fault analysis

    Overcurrent, overvoltage, undervoltage, overheating, heavy load, encoder error, and overspeed protection functions
