    SM130F0850B

    SM130F0850B Servo Motor with Brake features a compact design, making it ideal for high-performance applications with Position/Speed/Torque control modes. It includes automatic motor recognition, USB programming, and Easytune features for easy configuration. Delivering 850W power, a 19mm shaft diameter, a 130mm flange, 1500rpm speed, a 23-bit Nikon encoder, and 5.4Nm torque, this servo motor ensures precision, efficiency, and reliability.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

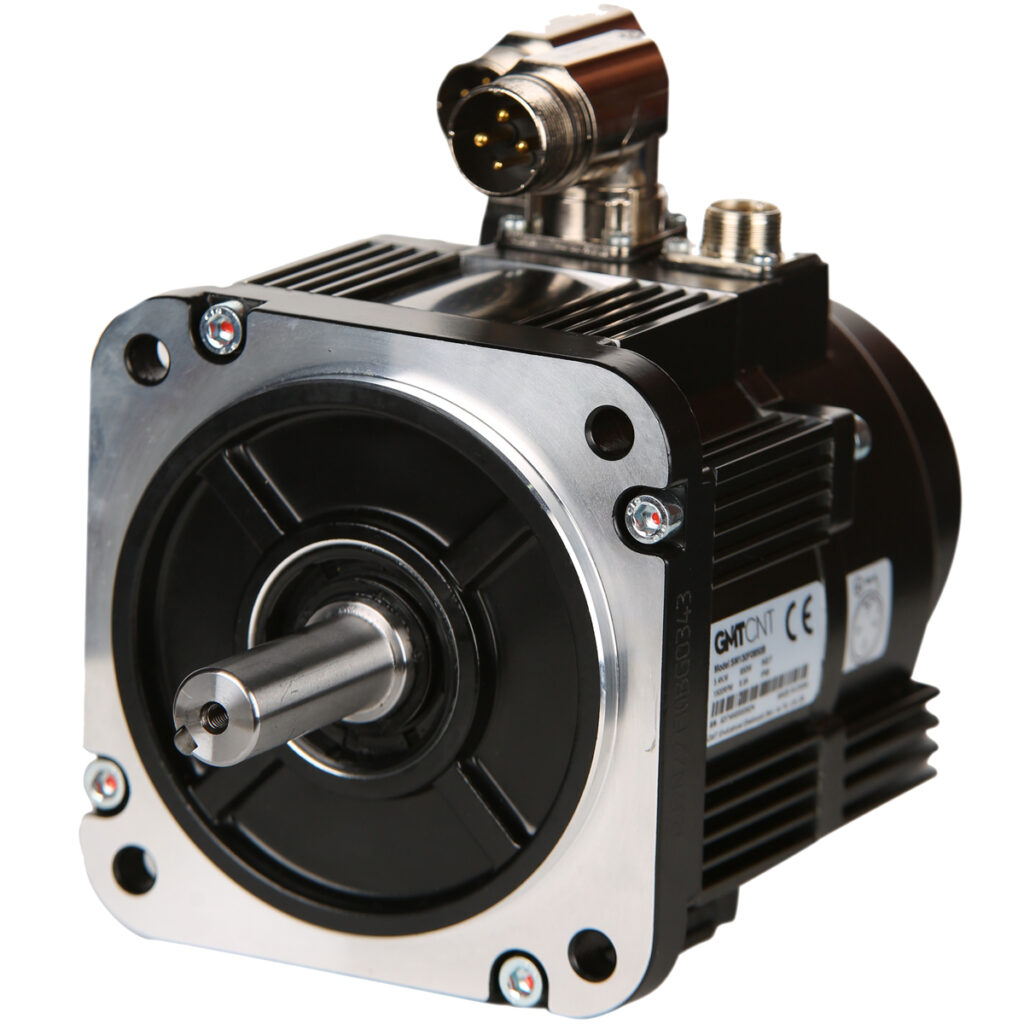

    SM130F0850B SERVO MOTOR WITH BRAKE

    SD Series Servo Systems offer solutions for machine manufacturers in industries such as testing devices, presses, cutting, filling, packaging, plastics, and food with their compact design, Position/Speed/Torque control modes, and high performance.

    It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

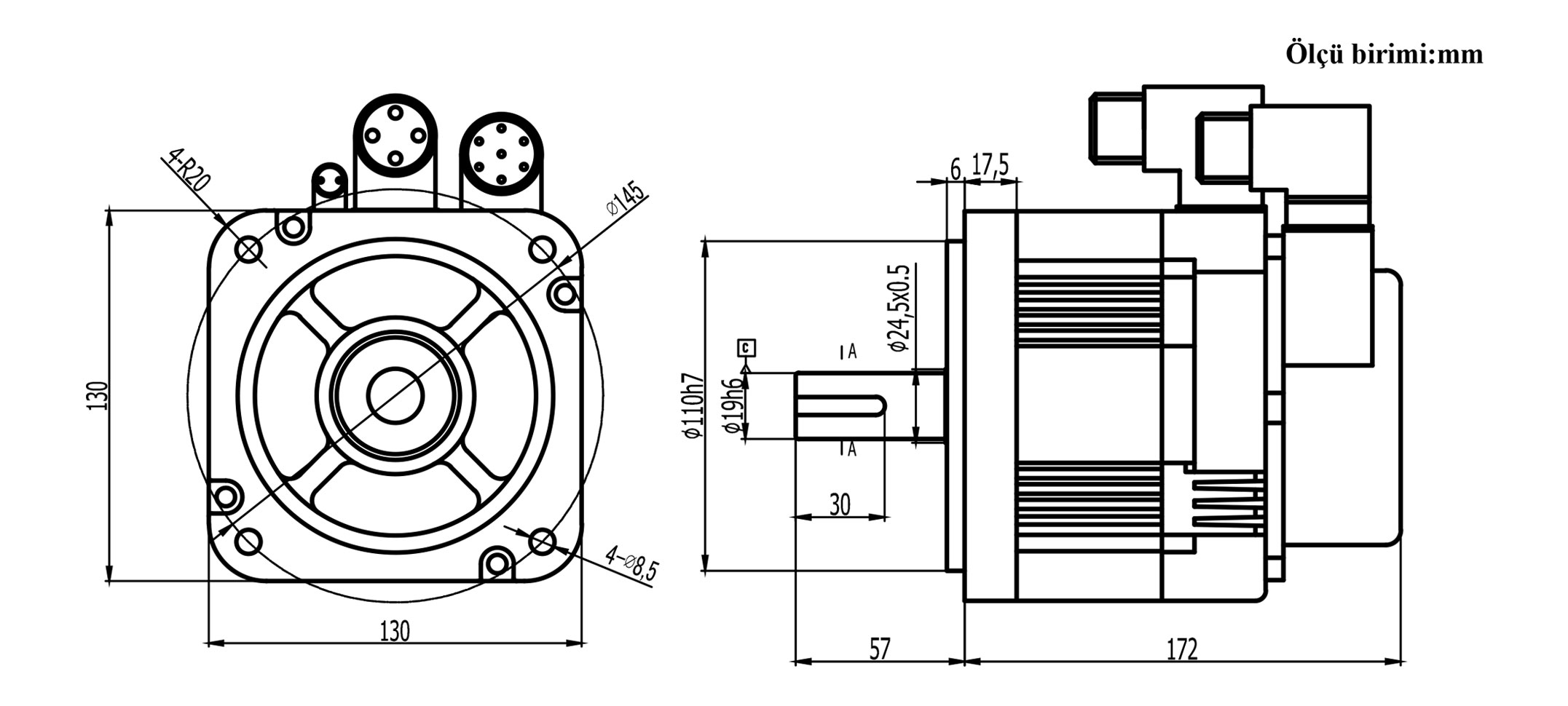

    850W

    19mm shaft diameter

    130mm flange connection

    1500rpm

    23-bit Nikon brand encoder

    5.4Nm

    Nominal Voltage (VAC) 200-220
    Nominal Power (W) 850
    Nominal Torque (N.m) 5.4
    Peak Torque (N.m) 13.5
    Nominal Speed (rpm) 1500
    Peak Speed (rpm) 3000
    Nominal Current (Amp) 6.5
    Peak Current (Amp) 16.3
    Torque Constant (N.m / Amp) 0.84
    EMF Constant (V / krpm) 64
    Resistance (Ω) 1.1 ± 10%
    Inductance (mH) 5.2 ± 10%
    Inertia (kg*m²*10⁻⁴) 13.88
    Poles 10
    Encoder 23 bit
    IP Class IP65
    Weight (Kg) 6.9
