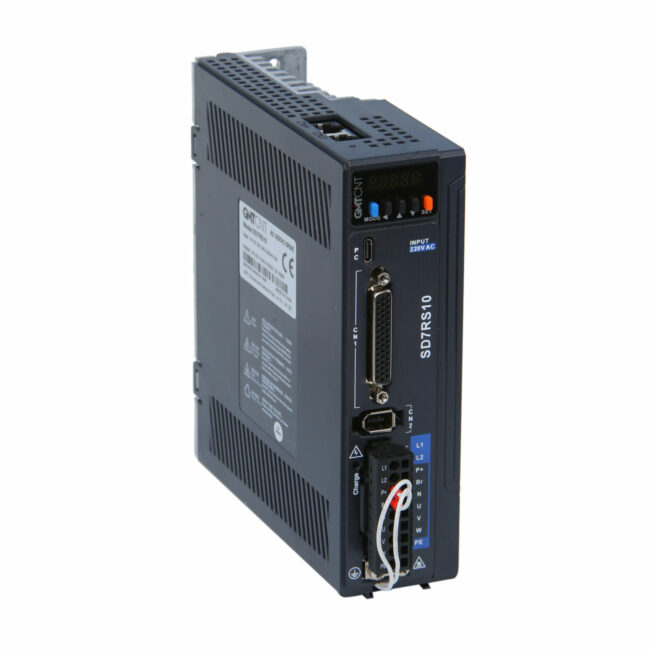

    SD7RS10 SERVO DRIVE

    SD Series Servo Systems provide solutions to machine manufacturers in industries such as testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with its compact design, Position/Speed/Torque control modes, and high performance. It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

    SD7 Servo Drives have the following key features:

    Single-phase 220V -15%~+10% 50/60HZ

    Three-phase 380V – 400V -15%~+10% 50/60HZ

    400W-7.5kW Power Range

    Position/Speed/Torque Control modes

    Transition capability between control modes

    Easy adjustment, control flexibility

    Automatic motor type detection

    Modbus RTU/EtherCAT

    23bit Absolute Encoder

    Built-in braking resistor

    Ability to adjust parameters via PC software or built-in keypad and display

    USB Type-C port for PC

    8 Digital inputs

    5 Digital outputs

    5V (500kHz) / 24V (200kHz)

    2 -10~+10VDC Analog Inputs

    1 -10~+10VDC Analog Output

    Auto Tuning

    Zero speed tracking function

    Black box function for fault analysis

    Overcurrent, overvoltage, undervoltage, overheating, heavy load, encoder error, and overspeed protection functions
