S2M180F4400BH

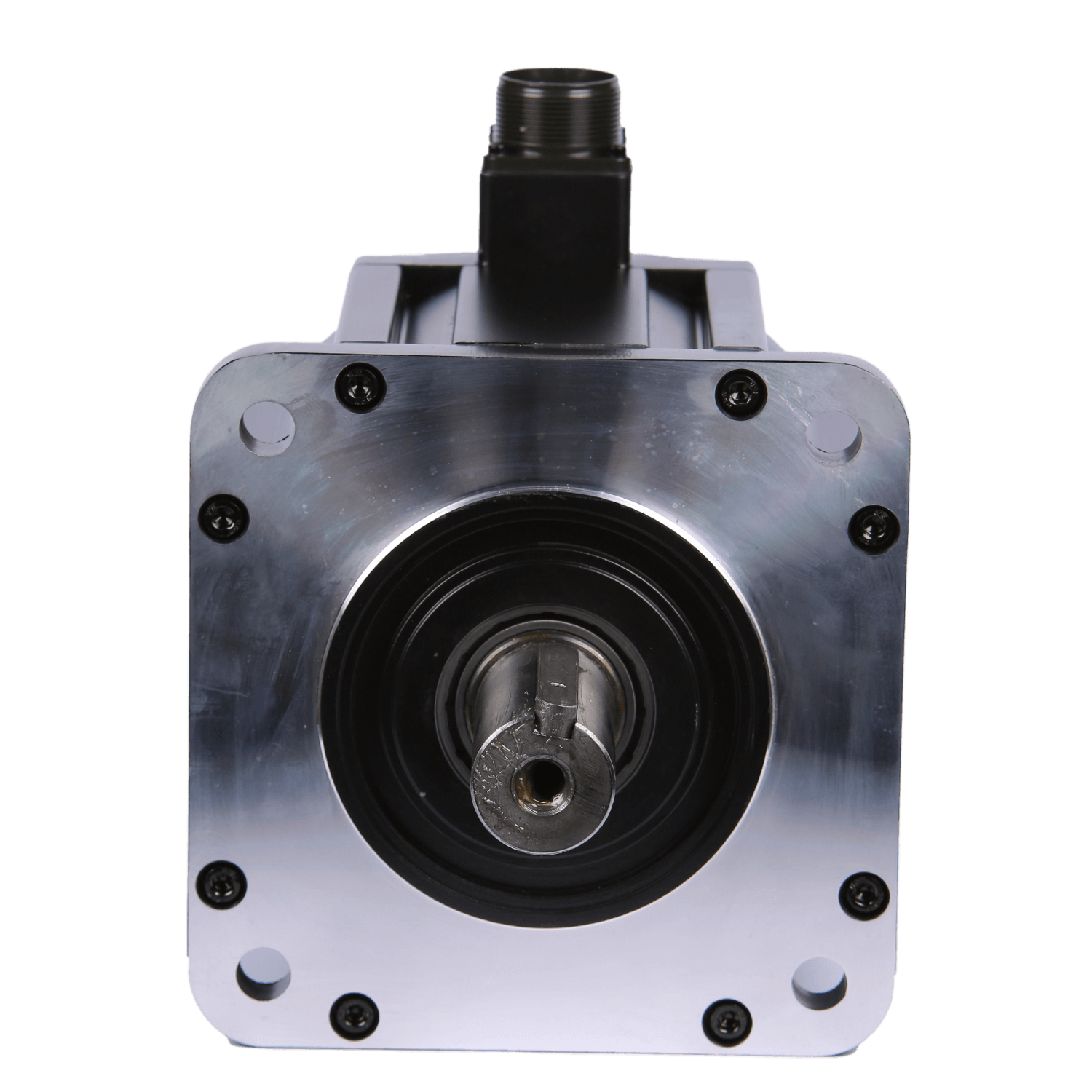

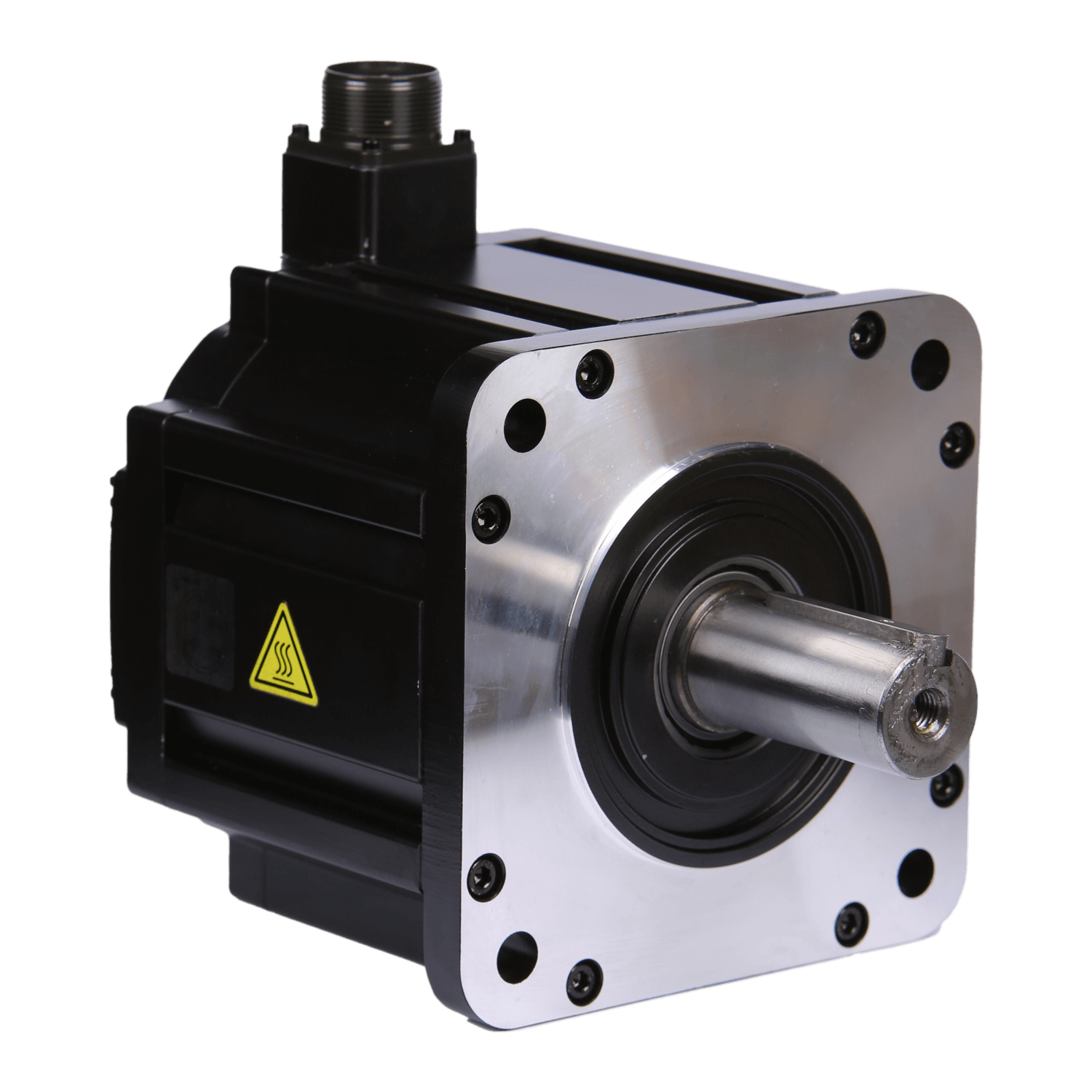

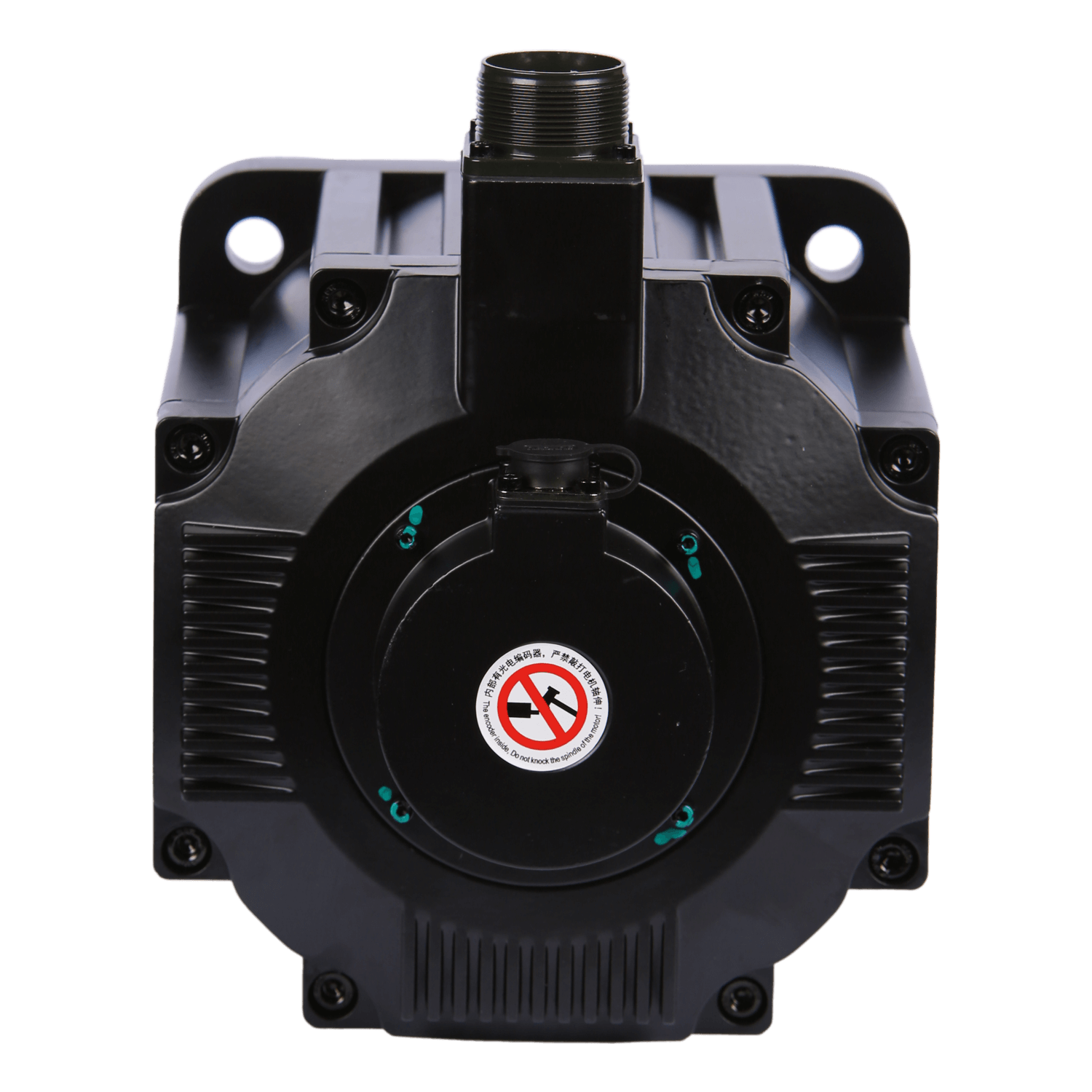

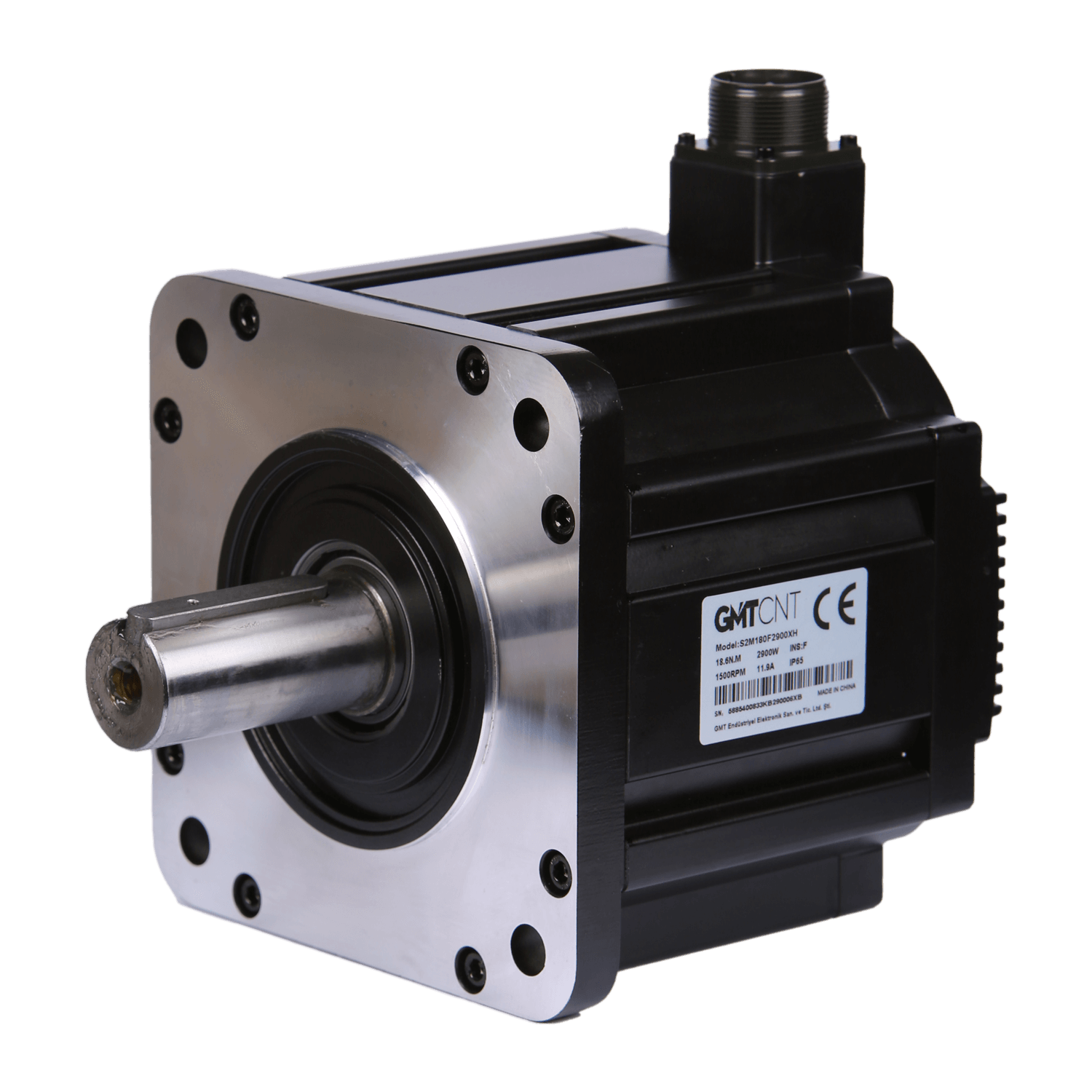

S2M180F4400BH Servo Motor with Brake delivers 4400W power, a 30mm shaft diameter, a 180mm flange, 1500rpm speed, a 23-bit encoder, and 28.6Nm torque. It is suitable for testing devices, presses, filling, packaging, plastic, and food machinery with position, speed, and torque control modes. Featuring USB programming and automatic motor recognition, it offers a user-friendly experience.

PDF

Whatsapp

S2M180F4400BH SERVO MOTOR WITH BRAKE

SD7 Series Servo Systems offer solutions for machine manufacturers in industries such as testing devices, presses, cutting, filling, packaging, plastics, and food with their compact design, Position/Speed/Torque control modes, and high performance.

It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

4400W

30mm shaft diameter

180mm flange connection

1500rpm

23-bit absolute encoder

28.6Nm

Nominal Voltage (Vac) 380
Nominal Power (W) 4400
Nominal Torque (N.m) 28.4
Peak Torque (N.m) 71
Nominal Speed (rpm) 1500
Peak Speed (rpm) 3000
Nominal Current (Amp) 16.3
Peak Current (Amp) 41
Torque Constant (N.m/Amp) 1.74
Back EMF Constant (V/krpm) 115
Resistance (Ω) 0.26
Inductance (mH) 6.4
Inertia (kg*m²*10⁴) 60.41
Poles 10
Encoder 23-bit optical
Protection Class (IP) IP65
Weight (Kg) 25.4
