    S2M080F0750ADX

    S2M080F0750ADX servo motor delivers 750W power, a 19mm shaft diameter, 80mm flange connection, and 3000rpm speed, ensuring high performance. Equipped with a 23-bit absolute encoder and 2.39Nm torque capacity, this motor is an ideal solution for industrial applications. It stands out with its user-friendly features, offering efficiency and reliability.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

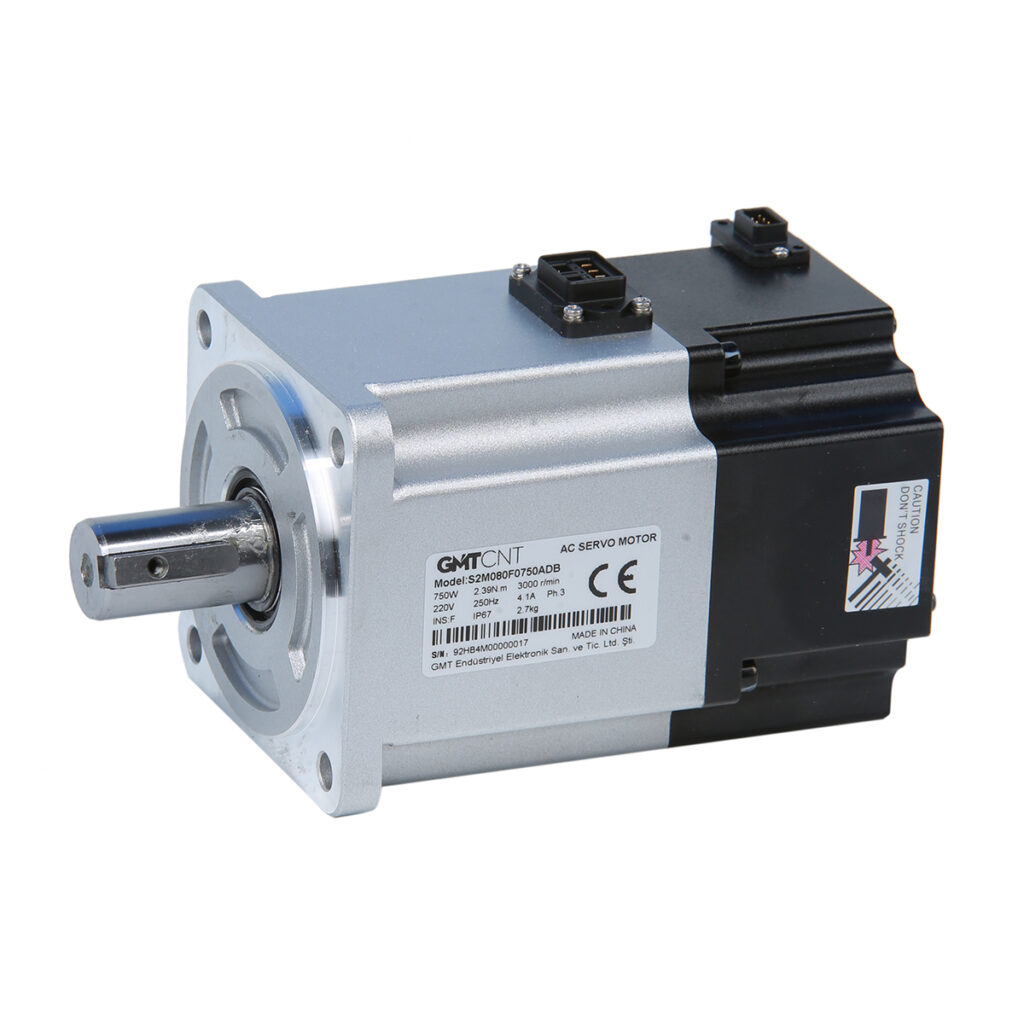

    S2M080F0750ADX SERVO MOTOR

    SD7 Series Servo Systems offer solutions for machine manufacturers in industries such as testing devices, presses, cutting, filling, packaging, plastics, and food with their compact design, Position/Speed/Torque control modes, and high performance.

    It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

    750W

    19mm shaft diameter

    80mm flange connection

    3000rpm

    23-bit absolute encoder

    2.39Nm

    Nominal Voltage (VAC) 220
    Nominal Power (W) 750
    Nominal Torque (N.m) 2.39
    Max. Torque (N.m) 7.17
    Nominal Speed (rpm) 3000
    Max. Speed (rpm) 5000
    Nominal Current (Amp) 4.1
    Max. Current (Amp) 13.4
    Torque Constant (N.m / Amp) 0.645
    EMF Constant (V / krpm) 39
    Resistance (Ω) 1.7
    Inductance (mH) 8
    Inertia (kg*m²*10⁻⁴) 1.5
    Poles 10
    Encoder Type 23-bit optical
    Protection Class IP67
    Weight (Kg) 2.12
