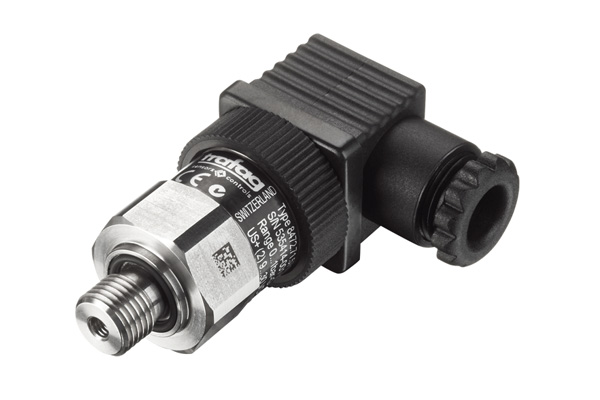

    EPI 8287 Pressure Transmitter

    The EPI 8287 Pressure Transmitter is a stainless steel diaphragm pressure transmitter. Its one-piece welded, leak-proof body provides high durability, resistance to environmental conditions, and a very small, compact design.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPI 8287 PRESSURE TRANSMITTER
    It has a thin film steel diaphragm.

    Its one-piece welded construction provides excellent sealing properties, making it extra durable and long-lasting.

    It has a stainless steel body, resistant to high pressures.

    It offers many different models ranging from 0...2.5 bar to 0...600 bar.

    It has high accuracy of ±0.3% and ±0.5% FS.

    It has a wide temperature range up to 125°C and a triple overpressure safety that provides excellent solutions for various harsh applications.

    Optional: It has 5 times overpressure resistance.

    Optional AISI316L body material is available.

    It has EMC and reverse polarity protection.

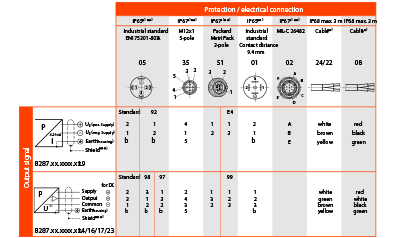

    It has an IP 65, IP 67, or IP 68 protection class. (Please refer to the electrical connection table)

    Different analog output signal options: 4-20 mA, 0...5 VDC, 1...6 VDC, 0...10VDC, 0.5...4.5 VDC ratiometric.

    Mechanical connection options for pressure: G1/4" female, G1/4" male, R1/4" male, G1/2" male, 1/4" NPT male, 1/4" -18 NPT female, 1/2" NPT male, M14x1.5 male, 7/16"-20UNF male, 7/16"-20UNF female.
