    ECTN 8477 Marine Pressure Transmitter

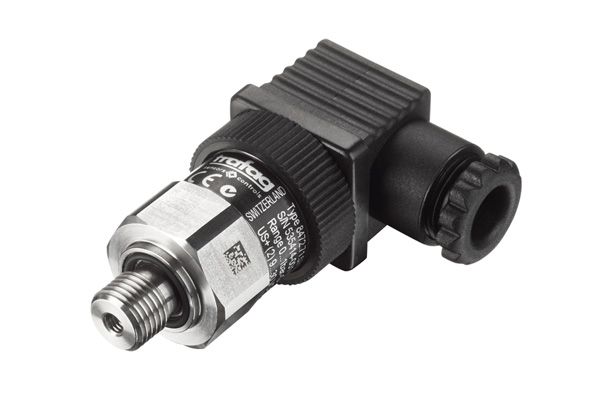

    The ECTN 8477 Marine Pressure Transmitter is a ceramic diaphragm pressure transmitter. Certified for marine use, it is economical and durable, with options for relative or absolute pressure measurement.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ECTN 8477 MARINE PRESSURE TRANSMITTER
    It is marine certified.

    It has a ceramic diaphragm.

    It offers an economical and suitable solution.

    It has a standard stainless steel body, with an optional titanium body.

    It offers many different model options ranging from 0 ... 0.1 bar to 0 ... 250 bar.

    It has EMC and reverse polarity protection.

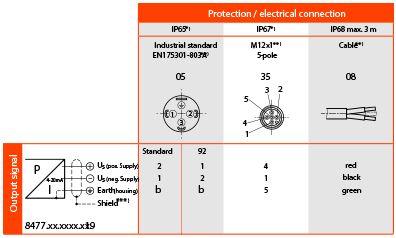

    It has an IP65 (EN175301-803A socket), IP67 (M12 socket), or IP68 (cabled) protection class.

    It has a ± 0.3 %FS accuracy.

    It has a 4-20 mA analog output.

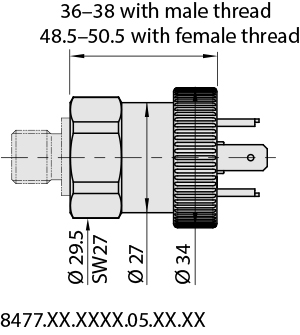

    Mechanical connection options for pressure: G1/4" male, G1/4" female, G1/2" male, 1/4 NPT" male, 7/16"-20UNF male, R1/4" male, G3/4" pre-membrane.
