    ALS6 Optical Linear Scale

    ALS6 Optical Glass Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. They offer standard resolutions of 1 µm (0.001 mm) and 5 µm (0.005 mm). Available in measurement/stroke lengths up to 3100 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

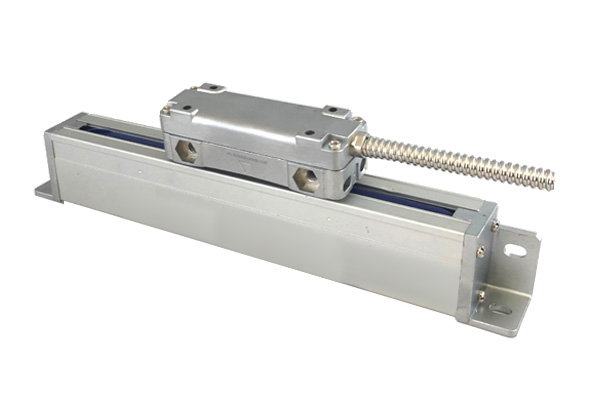

    ALS6 OPTICAL LINEAR SCALE

    ALS6 Optical Glass Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications.

    ALS6 Optical Glass Scales operate by the movement of a reader sensor mounted on bearings along the glass scale, performing counting functions.

    The spring-loaded aluminum housing is mounted on the optical glass scale with 5 bearings.

    Supply voltage: 5V DC - TTL.

    Provides incremental (encoder/pulse) signal output.

    Standard resolutions: 1 µm (0.001 mm) and 5 µm (0.005 mm).

    Available in measurement/stroke lengths up to 3100 mm.

    Equipped with a sealed protection system.

    Complies with IP54 Protection Class.

    The cables are protected by a steel galvanized spiral conduit to prevent damage under harsh production conditions.

    Standard cable lengths are 3.5 and 5 meters.

    EMS320 Magnetic Scales can be used with EMOS80, EMOS100 Digital Displays, PLCs, CNC Systems, Digital Counters, and all devices with encoder reading capability.

    Resolution 1µm, 5µm, or 1Vpp Sine Wave
    Operating Temperature 0°C ... +50°C
    Operating Speed 3 m/s
    Supply Voltage 5 VDC
