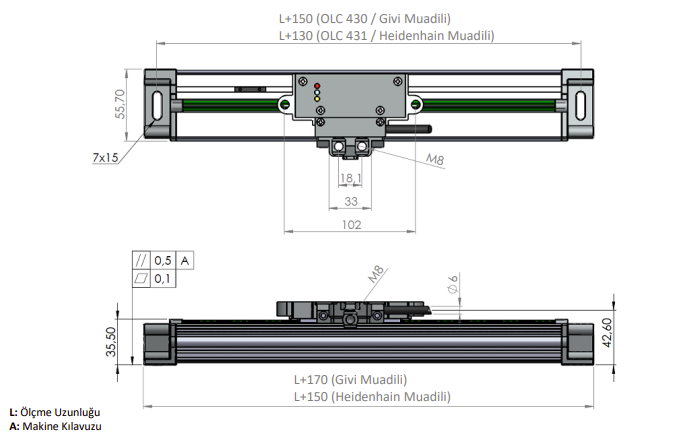

    OLC43X OPTICAL LINEAR SCALE

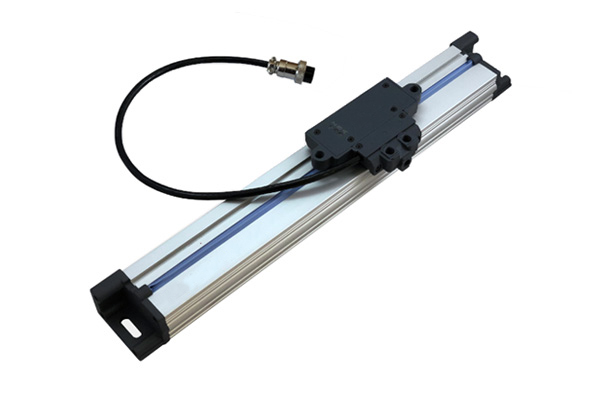

    OLC43X Optical Linear Encoders consist of a seal-protected aluminum profile housing and a reader sensor that moves along this housing on bearings.

    As measurement is performed without contact via a glass scale, it operates without friction.

    With a reference signal selectable every 10 mm and a resolution of 5µm, it is highly suitable for measurements requiring high precision.

    The sealed structure provides extra protection against dust, dirt, and chips.

    OLC43X Optical Scales are available in various measuring lengths ranging from 50 mm to 1000 mm.

    When mounted with a joint, it offers wide installation tolerance.

    It supports a movement speed of 60 m/min.

    Resolution 5µm
    Operating Temperature 0°C ... +50°C
    Electrical Connection M16 8-pin connector, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage 5 VDC, 10–30 VDC
