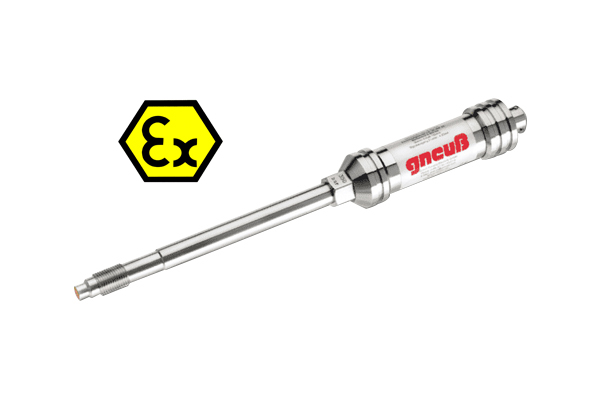

    DAIX Series Melt Pressure Sensor

    Exproof melt pressure sensor Measurement options from 0...17 bar to 0...2000 bar 4-20 mA analog output 0.15%, 0.25% or 0.5% F.S accuracy IP65 or IP55 protection class Compact design

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    DAIX SERIES MELT PRESSURE SENSOR

    EX-PROOF certified, resistant to explosions and the toughest conditions

    Durable and precise melt pressure sensor

    Measurement option up to 2000 bar

    High accuracy: 0.15%, 0.25% or 0.5%FS

    ± 0.1 %FS repeatability

    Stable and long-distance resistant 2-wire 4-20 mA current output

    Protected against incorrect cable connections

    Special G-coating membrane resistant to sticky materials

    Minimal accuracy loss against temperature variations: ± 0.02 bar / °C

    2 different measurement fluid options:

    - Mercury-free and food-grade special NTX™ (N-terminal telopeptide) fluid, resistant up to 300 °C

    - Hg (Mercury), resistant up to 400 °C

    Ex II 1G Ex ia IIC T4

    Resolution 16 bit
    Operating Temperature -20... +60 °C
    Protection Class IP65 / IP55
    Pressure Range From 0...17 to 0...2000 bar
    Linearity 0.15%, 0.25% or 0.5% F.S
    Repeatability ± 0.1 %
    Membrane Coating G-coating
    Maximum Overpressure Load Up to 1000 bar x 2, after 1000 bar x 1.5
    Bridge Resistance 350 Ohm
    Supply Voltage 19...30 VDC
    Signal Output 4-20 mA
    Transmission Medium NTX TM as standard
    Mechanical Connection 1/2”20 UNF or M18 x 1.5
    Calibration Point 80 %
    Insulation Resistance >1000 MOhm @ 50 V
    Maximum Temperature at Diaphragm 300 °C NTX, 400 °C HG, 500 °C NAK
    Maximum Torque 1/2”20 UNF 30 Nm, M18 x 1.5 50 Nm
