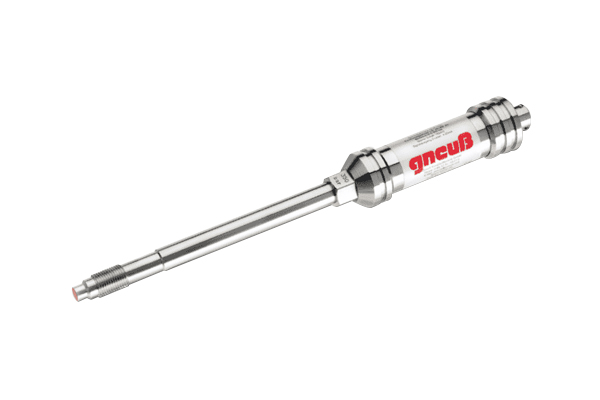

    DAI Series Melting Pressure Sensor

    Sensitive and long-lasting melting pressure sensor 0 ... 17 bar to 0 ... 2000 bar measurement options 0-20 MA, 4-20 MA or 0-10 VDC analog output options 0.15%, 0.25% or 0.5% F.S Sensitivity IP65 or IP55 Protection Class Compact Building

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    DAI Series Melting Pressure Sensor

    DAI Series Melting Pressure Sensor

    Measurement option up to 2000 bar

    High Sensitivity: 0.15%FS, 0.25%FS or 0.5%FS

    ± 0.1 %FS Repetibility

    Stabil and long distance resistant current and voltage output options:

    -4-20 MA with 2, 3 or 4 cables (the most preferred standard 2-tip 4-20 MA model.)

    - 0-20 mA with 3 or 4 cables

    - 0-10 VDC output with 3 or 4 cables

    Protected against the wrong cable connection

    Special G-Coating Membrane with adhesive materials

    Minimum Sensitivity loss to temperature changes: ± 0.02 bar / ° C

    3 DIFFERENT MEASUREMENT FLUD OPTION:

    - Special NTX ™ (N-Terminal Telopeptitis) fluid according to the food industry and resistant to 300 ° C

    - HG (mercury) durable up to 400 ° C

    - Cash (sodium potassium) resistant up to 500 ° C

    DAI GNEUSS MATERIAL Pressure Sensor Product Selection Configate

    https://shop.gneuss.de/en/melt-pressure-transducers/dai?configurator=y

    Resolution 16 bit
    Working temperature -40… +85 ° C
    Protection class IP65 / IP55
    Pressure range From 0 ... 17 to 0 ... 2000 bar
    Linearity 0.15%, 0.25% or 0.5% F.S
    Recurrenceness ± 0.1 %
    Membrane coating G-surge
    Maximum excessive pressure load After x 2 1000 bar up to 1000 bar x 1.5
    Bridge resistance 350 ohm
    Supply voltage 19 - 32 VDC
    Signal output V or MA
    Output signal 2 MV/V, 3,33 mV/V
    Transmission environment NTX TM as standard
    Mechanical connection Mechanical connection
    Mechanical connection Mechanical connection
    Insulation resistance > 1000 MOHM @ 50 V
    Maximum temperature in the diaphragm 300 ° C NTX 400 ° C HG 500 ° C cash
    Maximum torque 1/2 ”20 UNF 30 Nm M18 x 1.5 50 Nm
