    DAIL Series Melt Pressure Sensor

    Precise and long-lasting melt pressure sensor Measurement options from 0...50 bar to 0...2000 bar Analog output options: 0-20 mA, 4-20 mA, 0-10 VDC Accuracy of 0.15%, 0.25% or 0.5% F.S Protection class IP65 or IP55 Compact design

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

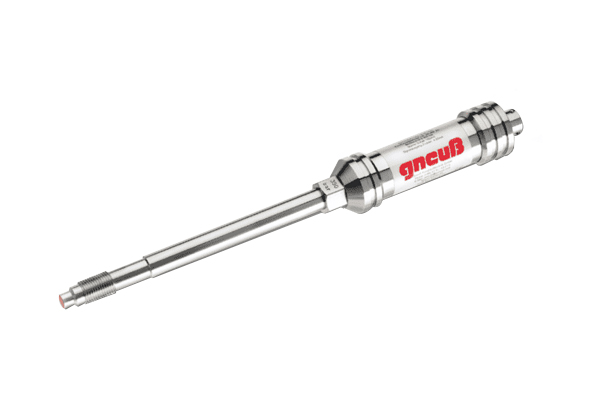

    DAIL SERIES MELT PRESSURE SENSOR

    Durable and precise melt pressure sensor

    Measurement option up to 2000 bar

    High accuracy: 0.15%, 0.25%, 0.5% FS

    ± 0.1 %FS repeatability

    Stable and long-distance resistant current and voltage output options:

    - 2, 3 or 4-wire 4-20 mA (The most preferred standard is the 2-wire 4-20 mA model.)

    - 3 or 4-wire 0-20 mA

    - 3 or 4-wire 0-10 VDC output

    Protected against incorrect cable connections

    Special G-coating membrane resistant to sticky materials

    Minimal accuracy loss against temperature changes: ± 0.02 bar / °C

    3 different measurement fluid options:

    - Mercury-free and food-grade special NTX™ (N-terminal telopeptide) fluid, resistant up to 300 °C

    - Hg (Mercury), resistant up to 400 °C

    - NaK (Sodium Potassium), resistant up to 500 °C

    DAIL GNEUSS MELT PRESSURE SENSOR PRODUCT SELECTION CONFIGURATOR

    https://shop.gneuss.de/en/melt-pressure-transducers/dail?configurator=y

    Resolution 16 bit
    Operating Temperature -45 … +85°C
    Protection Class IP65 / IP55
    Pressure Range From 0...50 to 0...2000 bar
    Linearity 0.15%, 0.25% or 0.5% F.S
    Repeatability ± 0.1 %
    Membrane Coating G-coating
    Maximum Overpressure Load Up to 1000 bar x 2, after 1000 bar x 1.5
    Bridge Resistance 350 Ohm
    Supply Voltage 15...32 VDC
    Signal Output V or mA
    Output Signal 2 mV/V, 3.33 mV/V
    Transmission Medium NTX TM as standard
    Mechanical Connection 1/2”20 UNF or M18 x 1.5
    Calibration Point 80 %
    Insulation Resistance >1000 MOhm @ 50 V
    Maximum Temperature at Diaphragm 300 °C NTX, 400 °C HG, 500 °C NAK
    Maximum Torque 1/2”20 UNF 30 Nm, M18 x
