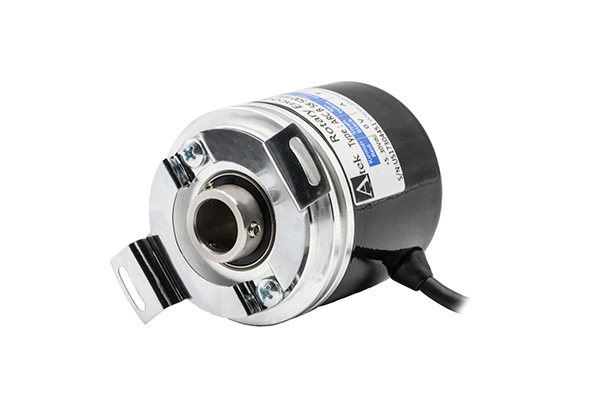

    ARS B 58 END HOLLOW SHAFT ROTARY ENKODER

    Magnetic principle inkremental angular measurements.

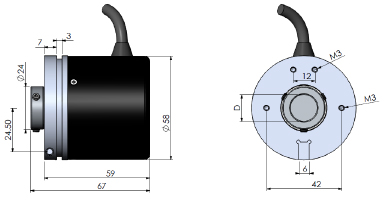

    It has a 58 mm body diameter.

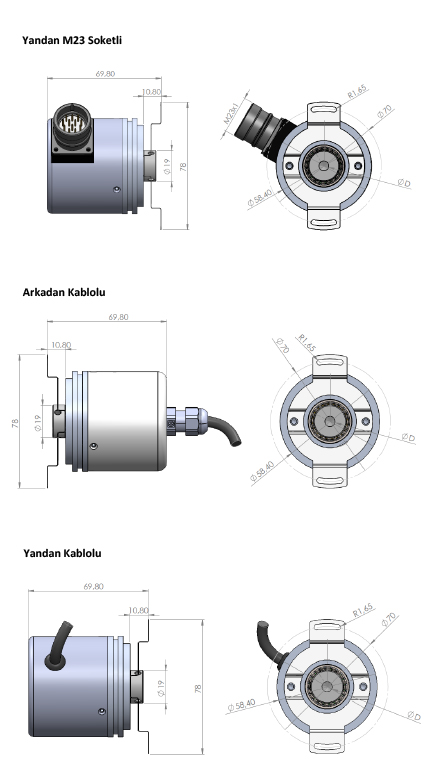

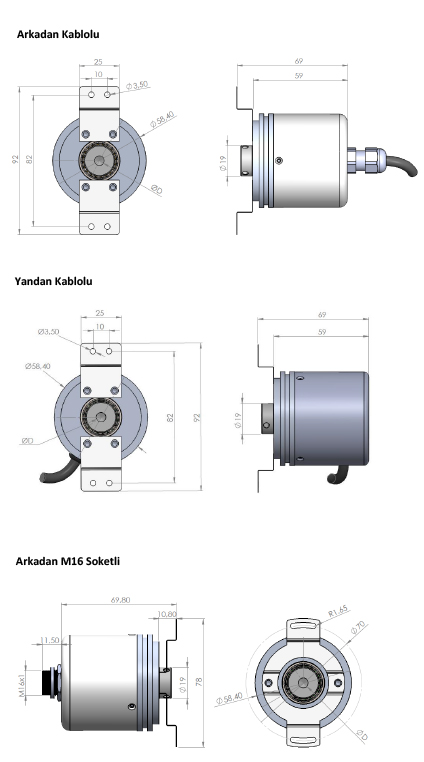

    There are Z -type flange or circular flange options.

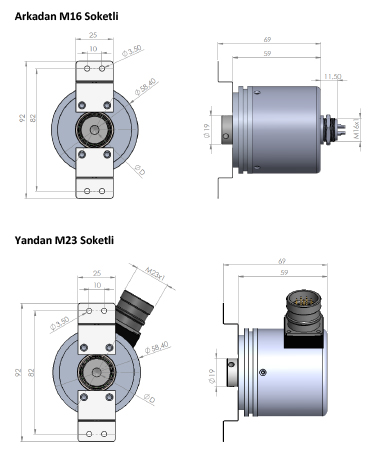

    S23 (M23, 12pin), S16 (M16, 8pin) are socket or standard cable options.

    There are semi -hole options with semi -hole between 6 and 20 mm.

    It is resistant to vibration and shock with a solid aluminum body.

    Easy to be installed.

    It has a resolution option up to 1024 pulse.

    It is durable up to 3000 rpm speed.(3000 revolutions per minute)

    IP54 protection class.

    Resolution Different options between 1 and 1024 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC
