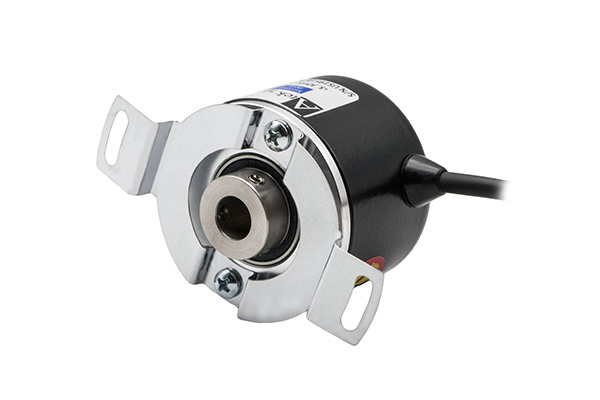

    ARS B 50 END HOLLOW SHAFT ROTARY ENKODER

    Magnetic principle inkremental angular measurements.

    It has a body diameter of 50 mm.

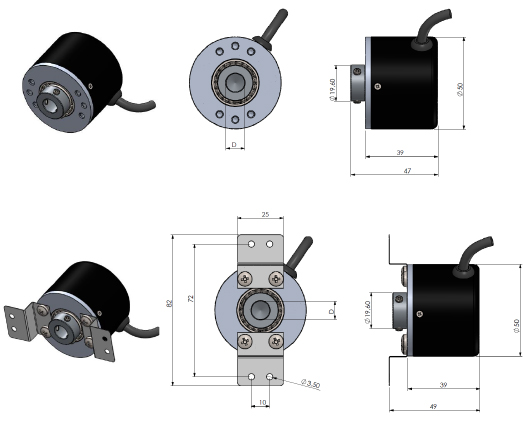

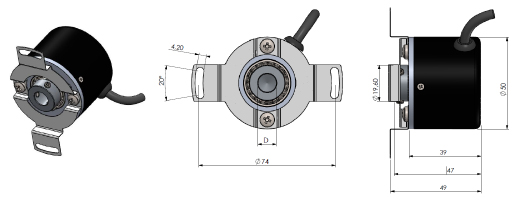

    There are Z -type flange or circular flange options.

    M16 has socket or standard cable options.

    6, 8, 10 or 12 mm hole diameter semi -Hollow (End Hollow/Semi Hollow) shaft options.

    It is resistant to vibration and shock with a solid aluminum body.

    Easy to be installed.

    It has a resolution option up to 1024 pulse.

    It is durable up to 3000 rpm speed.(3000 revolutions per minute)

    IP54 protection class.

    Resolution Different options between 1 and 1024 pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8 x 0.14 mm2 display cable
    Feeding voltage 10 ... 30 VDC or 5 VDC
