    Spherosyn300 Inductive Tube Type Linear Scales

    Spherosyn300 Inductive Tube Type Linear Scales are used in lathes, milling machines, boring mills, grinding machines, special machines, and automation applications. With an IP67 protection class, they are resistant to oil, water, dust, and similar contaminants.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

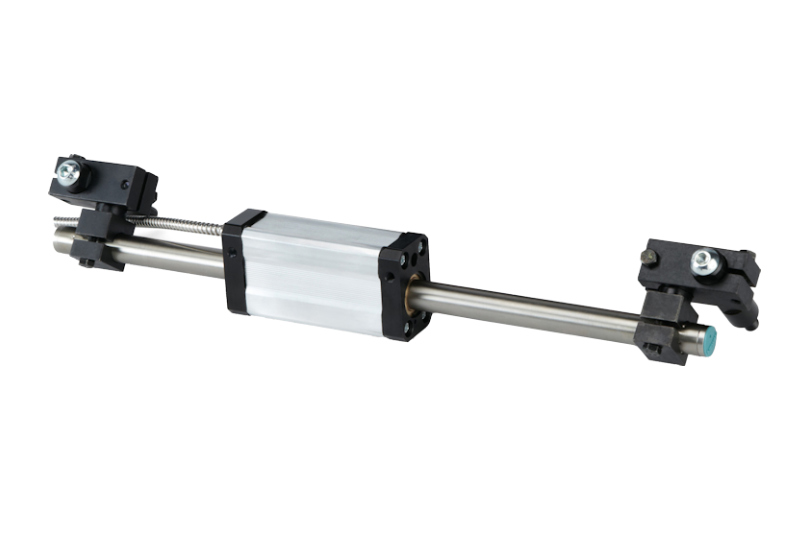

    SPHEROSYN300 INDUCTIVE TUBE TYPE LINEAR SCALE

    Spherosyn300 Magnetic Linear Scales are used in lathes, milling machines, boring mills, grinding machines, special machines, and automation applications.

    Newall Spherosyn 300 Magnetic Scales perform non-contact measurements as the scale shaft passes through the reader sensor.

    They feature Inductive Sensor Technology.

    They are manufactured with a supply voltage of 5Vdc - TTL.

    They offer a standard resolution of 5 µm (0.005).

    They are manufactured with lengths up to 3 meters.

    With IP67 Protection Class, they are resistant to oil, water, dust, and similar contaminants.

    The cables are protected with Steel Galvanized Spiral tubing to prevent damage under harsh industrial conditions.

    Standard cable lengths are produced as 5 meters.

    You can use Spherosyn 300 Magnetic Linear Scales with NEWALL Digital Readouts.

    Resolution 1µm, 5µm
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage 5Vdc - TTL Line Driver
    Linearity ±%0.2 FS
    Repeatability %0.01
    Accuracy +0.5%FS (max.)
