    Microsyn300 Inductive Rod Type Linear Scales

    Microsyn300 Inductive Rod Type Linear Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications. With an IP67 Protection Class, they are resistant to oil, water, dust, and similar external factors.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

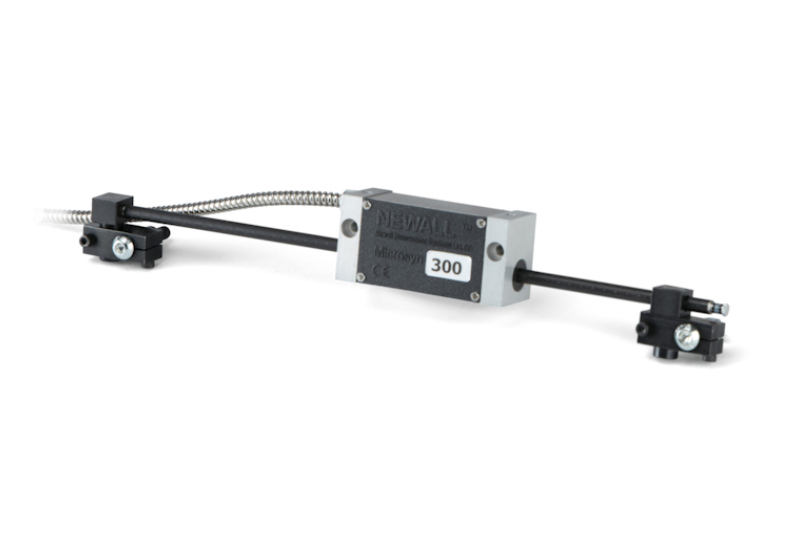

    MICROSYN300 INDUCTIVE ROD TYPE LINEAR SCALE

    Newall Microsyn300 Magnetic Linear Scales are used in lathes, milling machines, boring machines, grinding machines, special machinery, and automation applications.

    Newall Microsyn300 Magnetic Scales measure without contact as the scale rod passes through the reader sensor.

    They feature Inductive Sensor Technology.

    Supply voltage: 5V DC - TTL.

    Standard resolution is 5 µm (0.005 mm).

    Available in lengths up to 3 meters.

    With IP67 Protection Class, they are unaffected by oil, water, dust, and similar external factors.

    The cables are protected by a steel galvanized spiral conduit to prevent damage under harsh production conditions.

    Standard cable length is 5 meters.

    Microsyn 300 Magnetic Linear Scales can be used with NEWALL Digital Displays.

    Resolution 1µm, 5µm
    Electrical Connection D-Sub 9 pin, 5 or 8 x 0.14 mm² shielded cable
    Supply Voltage 5V DC - TTL Line Driver
    Linearity ±0.2%FS, ±0.5%FS
    Repeatability 0.01%
    Accuracy +0.5%FS (max.)
