    All-5 Mobile DC Service Equipment

    All-5 mobile electric grease pumps are produced only for lubrication purposes.Standard grease packaging buckets of 16 or 20 liter can be used as a warehouse.Pump systems dive lengths can be produced for different bucket volumes.All-5 pumps are produced with 3 different size grease piston options.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

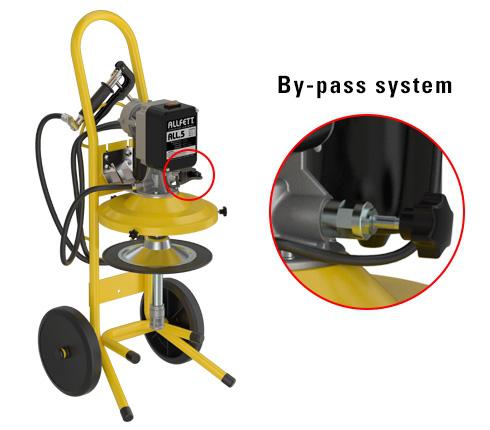

    All-5 Mobile DC Service Equipment

    All-5 mobile series products are piston type pumps produced for lubrication purposes.

    Thanks to the carrier unit integrated with the pump, it can be easily transported anywhere.

    The pump displacement is varied, so that it can meet different amounts of needs.

    Pumps do not have their own oil reservoir.

    It provides the need for oil reservoir with standard Gres packaging buckets that can be purchased from the market.

    Special production can be made according to different types of these buckets.

    The All-5 pump system diversifies the amount of flow with 3 different types of oil pistons.

    Each piston size has a different amount of pressure and flow rates.

    WARNING :All-5 pumps are produced for lubrication and therefore it is inconvenient to operate continuously over 5 minutes.

    Working temperature -25 ° ...+80 ° C
    Protection class IP54
    Motor type 24 VDC
    Max.Pressure (Ø12 - Ø16 piston) 180 bar., (Ø20 piston) 300 bar.
    Oil class NLGI 00 (-30 ° C to -10 ° C), NLGI 0 (0 ° C to 0 ° C), NLGI 1 (0 ° C to 10 ° C)
    Pump Element displacement (Ø12 piston) 140 cm³/minute, (Ø16 piston) 250 cm³/minute, (Ø20 piston) 390 cm³/minute
    HUZNE CAPACITES There is no chamber.(Uses 16 - 20 liters of standard Gres packaging buckets as a chamber)
