    All-5 DC Barrel Type Service Equipment

    All-5 Series products are piston-type pumps produced for lubrication purposes.

    The displacement of the pump is a variable to provide the necessary lubrication needs.

    There is no lubricant store in the pump system.

    Standard grease barrels can be used as a reservoir.

    Pump systems dive lengths can be produced for different barrel volumes.

    All-5 pumps are produced with 3 different sizes grease piston options.

    Each piston gives a different amount of grease and pressure value to the pump output.

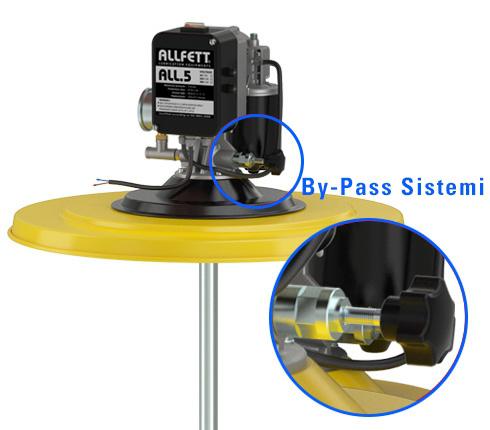

    All-5 pumps can be selected from 2 main options operating with pressure switch or By-Pass system.

    ATTENTION :All5 pumps are produced only for lubrication purposes, so it is not appropriate to operate the pump for more than 5 minutes.

    Working temperature -25 ° ...+80 ° C
    Protection class IP54
    Motor type 24 VDC
    Max.Pressure (Ø12 - Ø16 piston) 180 bar., (Ø20 piston) 150 bar.
    Oil class NLGI 00 (-30 ° C to -10 ° C), NLGI 0 (0 ° C to 0 ° C), NLGI 1 (0 ° C to 10 ° C)
    Pump Element displacement (Ø12 piston) 140 cm³/minute, (Ø16 piston) 250 cm³/minute, (Ø20 piston) 390 cm³/minute
