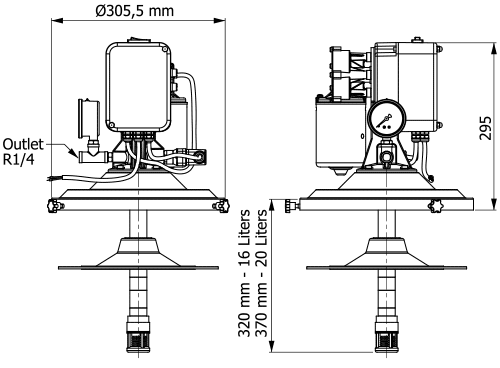

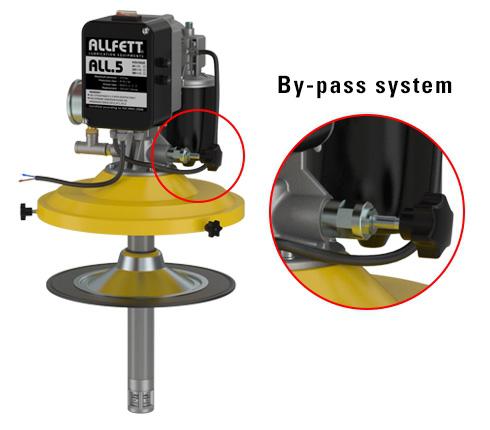

    All-5 DC Service Equipment

    All-5 Series products are piston-type pumps produced for lubrication purposes.

    The pump displacement is varied, so that it can meet different amounts of needs.

    Pumps do not have their own oil reservoir.

    It provides the need for oil reservoir with standard Gres packaging buckets that can be purchased from the market.

    Special production can be made according to different types of these buckets.

    The All-5 pump system diversifies the amount of flow with 3 different types of oil pistons.

    Each piston size has a different amount of pressure and flow rates.

    WARNING :All-5 pumps are produced for lubrication and therefore it is inconvenient to operate continuously over 5 minutes.

    Working temperature -25 ° ...+80 ° C
    Protection class IP54
    Motor type 24 VDC
    Max.Pressure (Ø12 - Ø16 piston) 180 bar., (Ø20 piston) 300 bar.
    Oil class NLGI 00 (-30 ° C to -10 ° C), NLGI 0 (0 ° C to 0 ° C), NLGI 1 (0 ° C to 10 ° C)
    Pump Element displacement (Ø12 piston) 140 cm³/minute, (Ø16 piston) 250 cm³/minute, (Ø20 piston) 390 cm³/minute
    HUZNE CAPACITES There is no chamber.(Uses 16 - 20 liters of standard Gres packaging buckets as a chamber)
