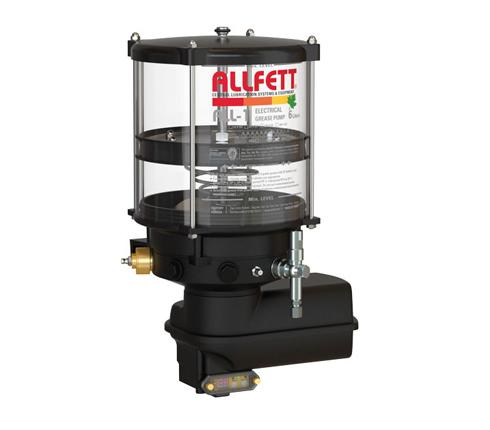

    ALL-1 PS GRES Lubrication Pump

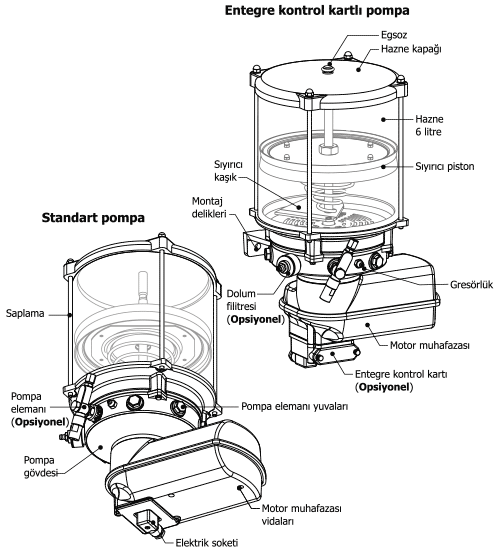

    All-10 PS series products are piston-type pumps produced for lubrication purposes.

    There are pump elements that are mounted on the trunk and perform pressure oil output.

    These pump elements can be added to the pump between 1 to 6 according to the number of oil outputs desired.

    Thanks to the oil piston in the pump chamber, the operating position of the pump is not affected.

    It can be easily applied on equipment with doner movement or its position and angle that can change continuously.

    The reservoir is made of transparent polycarbonate material to easily see the amount of oil in the pump from outside and the capacity amount is 6 liters.

    In order to adjust the operation and waiting times of the pump, the electronic control system, which can be used under the engine storage, is offered optionally.

    Thanks to this control system, which can be used when necessary, it is possible to receive a warning and warnings related to the system, electronic control and time adjustment of the oil level.

    Working temperature -40C ° - + 80C °
    Protection class IP54
    Motor type 12 - 24 V DC
    Max.Pressure 400 bar
    Oil class NLGI 000 (-30 ° C to -30 ° C), NLGI 00 (-30 ° C to -10 ° C), NLGI 0 (-10 ° C to 0 ° C), NLGI 1 (0 ° C to 10 ° C), NLGI 2 (10 ° C), NL 3 (30 ° C and Over)
    Pump Element displacement 1.5 cm³ / minute, 2.5 cm³ / minute, 3.5 cm³ / minute
    HUZNE CAPACITES 6 liters
    Control Card Voltage 10 - 30 V DC
    Working time range Between 1 second and 99 minutes
    Waiting time range 1 second to 99 hours
    Warnings Insurance Waste, Fault, Alarm
