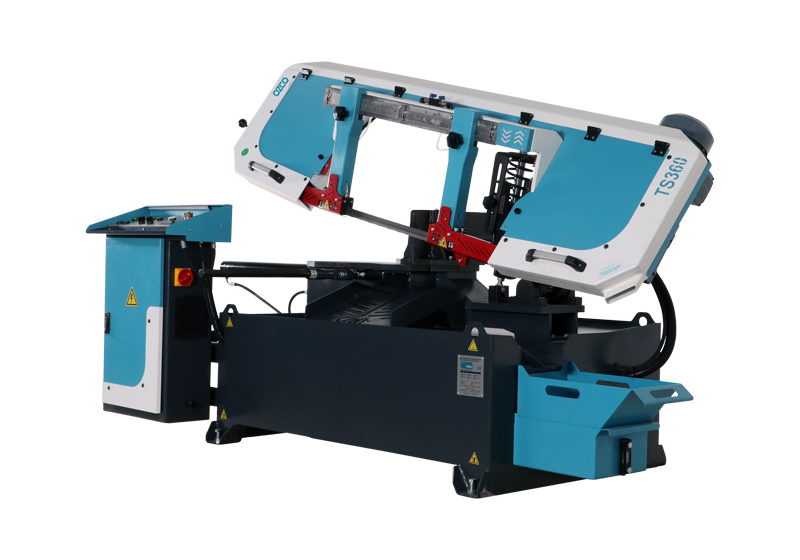

    TS360 Semi-Automatic Band Saw (Straight Cut)

    Our machine offers high performance with inverter-controlled speed adjustment, a locally manufactured motor and gearbox. It features a digital speed display and a high-quality cooling motor for reliable cutting. CE compliant and equipped with Schneider electric system.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    TS360 SEMI-AUTOMATIC BAND SAW (STRAIGHT CUT)

    Inverter-controlled speed adjustment/Vario system with stepless range between 20–100 m/min

    Digital speed display

    Ergonomic control panel for ease of use

    Special design cast wheels

    Hydro-mechanical blade tensioning

    High-performance locally manufactured motor

    Locally manufactured specially designed gearbox

    Adjustable vise pressure system for material-specific clamping pressure

    Double bearing blade guide system enhances cutting precision

    High-quality cooling motor made in Italy

    Chip brush

    Schneider electric system

    Complies with CE standards

    SCOPE OF DELIVERY

    1.5 m 5-roller material stand

    Factory-mounted bi-metal saw blade

    OPTIONAL ACCESSORIES

    8 TPI

    Motor Power 2.2 kW, 380 V w
    Cutting Angle Adjustment 45° from the vise
    Head Descent Speed Adjustment/Feed Hydraulic
    Saw Blade Dimensions 34x1.1x4560 mm
    Cutting Capacity at 0° Round: 360 mm; Square: 360x360 mm; Rectangular: 420x360 mm
    Cutting Capacity at 45° Round: 280 mm; Square: 280x280 mm; Rectangular: 280x360 mm
    Speed 20 - 100 m/min rpm
    Speed Control Inverter / Stepless
    Material Feed Height 760 mm
    Vise Opening Range 0–460 mm
    Vise Height 230 mm
    Hydraulic Motor Power 0.18 kW
    Cooling Motor Power 0.12 kW w
    Machine Dimensions 2480x1260x1330 mm
    Weight 800 kg
