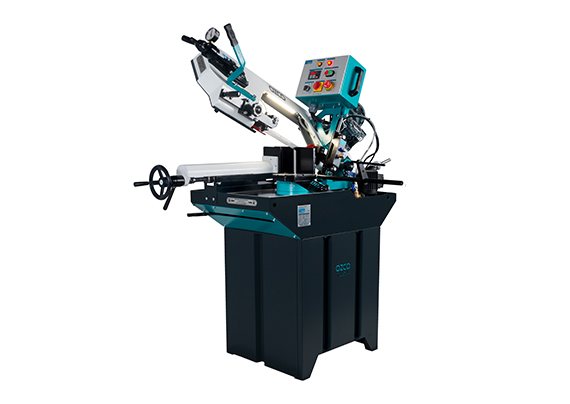

    T225MV Band Saw

    It provides high performance with inverter speed control, digital display, and hydraulic blade tensioning. It is safe with a domestic motor and high-quality cooling pump. Manufactured in Turkey and CE compliant.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    T225MV BAND SAW

    Infinite speed control with inverter/Vario system in the range of 21-84 m/min

    Digital speed indicator

    Monometer displaying blade tension

    Hydraulic-mechanical blade tensioning for easy adjustment of blade tension

    LED light illuminating the cutting area

    Hydro-mechanical blade tensioning and saw pressure indicator

    Cutting angle adjustment from the center up to 60°

    Ergonomic control panel for ease of use

    Specially designed cast pulleys

    High-quality hydraulic system for feed speed adjustment

    Domestic main motor, powerful reducer

    High-quality cooling pump

    High-quality electrical system

    Chip brush

    CE compliant

    Manufactured in TURKEY

    DELIVERY CONTENT

    Adjustable support arm

    Bi-metal saw blade mounted on the machine

    OPTIONAL ACCESSORIES

    Spare Saw Blade:

    24605/8 27x0.9x2460mm - 5/8 teeth

    24606/10 27x0.9x2460mm - 6/10 teeth

    24608/12 27x0.9x2460mm - 8/12 teeth

    246010/14 27x0.9x2460mm - 10/14 teeth

    Main Motor Power 1.1 kW, 380 V
    Cutting Angle 0° - 60°
    Cutting Angle Adjustment From the center
    Head Descending Speed Adjustment/Feed Hydraulic
    Saw Blade Dimensions 27x0.9x2460 mm
    Cutting Capacity 0° Round: 225 mm; Square: 195x195 mm; Rectangle: 265x150 mm
    Cutting Capacity 45° Round: 150 mm; Square: 150x150 mm; Rectangle: 200x135 mm
    Cutting Capacity 60° Round: 90 mm; Square: 85x85 mm
    Speed 21-84 m/min RPM
    Step Inverter/Unlimited
    Machine Dimensions 1650x610x1092 mm
    Weight 215 kg
