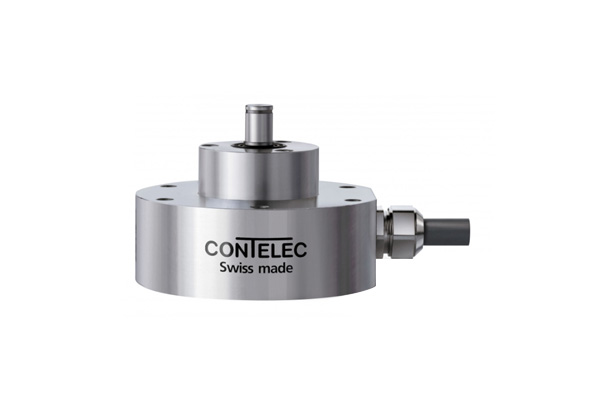

    Vert-X 88 Series Angle Sensor

    The Vert-X 88 Series Angle Sensor performs contactless, high-precision angular (rotary) measurements using the magnetic principle. Featuring an integrated 10 mm shaft and a contactless measurement principle, it offers an extremely long lifespan and an extra-durable aluminum housing.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    VERT-X 88 SERIES ANGLE SENSOR

    The Vert-X 88 Series Angle Sensor performs contactless, precise angular measurement using the magnetic principle.

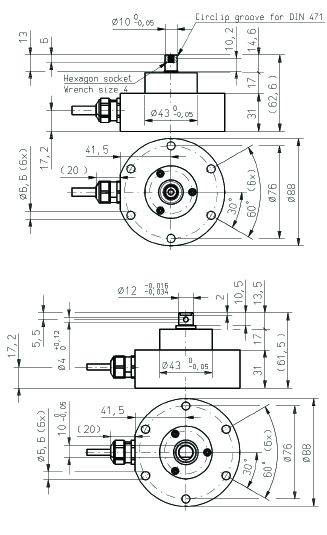

    It features a robust 10 mm diameter shaft.

    It is insensitive to environmental factors such as shocks, vibrations, dust, and moisture.

    It has an electrical measurement angle of 0...360°.

    It is mechanically capable of continuous rotation.

    Its compact and small design allows for easy installation in tight spaces.

    Using a contactless measurement principle, it has an extremely long lifespan: more than 360 million movement cycles.

    Analog: ratiometric 10% ... 90% VDC, 0-10 VDC, 0.5-4.5 VDC, 4-20mA with 12-bit resolution.

    CANopen: 16-bit resolution and 0.1% linearity.

    Different supply voltage options: 5 or 24 VDC.

    High linearity value: 0.3%.

    Optionally, the analog outputs can feature 14-bit resolution and 0.1% linearity with the MH-C2 series.

    Swiss Made, produced in Switzerland with high-quality standards.

    Resolution CANopen: 16 bit, Analog: 12 or 14 bit
    Operating Temperature -40°C ... +80°C
    Electrical Connection Cable
    Repeatability 0.1°
    Measurement Range 0...360°
