    Vert-X 22E Series Angle Sensor

    The Vert-X 22E Series Angle Sensor performs angular (rotary) measurements with high precision using a non-contact mechanical design based on magnetic principles. Since it operates without couplings, shafts, and is entirely non-contact, it is insensitive to vibrations and impacts and offers an infinite mechanical lifespan.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    VERT-X 22E SERIES ANGLE SENSOR

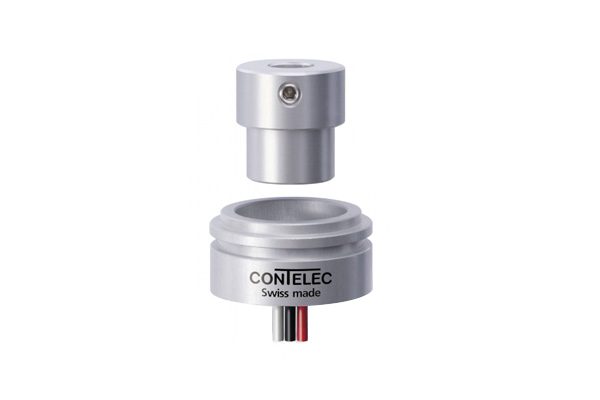

    The Vert-X 22E Series Absolute Rotary Encoder performs precise, non-contact angular measurements based on magnetic principles.

    Thanks to its non-contact mechanical measurement, it does not require a coupling or shaft.

    It is insensitive to environmental factors such as shocks, vibrations, dust, and humidity.

    It has an electrical measurement range of 0...360°.

    It features a compact, small, and extra-durable body.

    Since it measures with two separate parts that do not touch each other, it offers an infinite mechanical lifespan.

    CANopen output: 16-bit resolution.

    It has a 24 VDC supply voltage.

    High linearity value: ±0.3%.

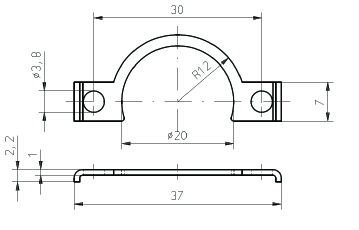

    It has metal mounting holes.

    Swiss Made, manufactured in Switzerland with high-quality standards.

    Resolution Analog: 12 bit or 14 bit PWM: 12 bit SPI: 14 bit
    Operating Temperature -40°C ... +80°C
    Electrical Connection Cable
    Repeatability 0.1°
    Supply Voltage 5 VDC or 24 VDC
    Measurement Range 0...360°
