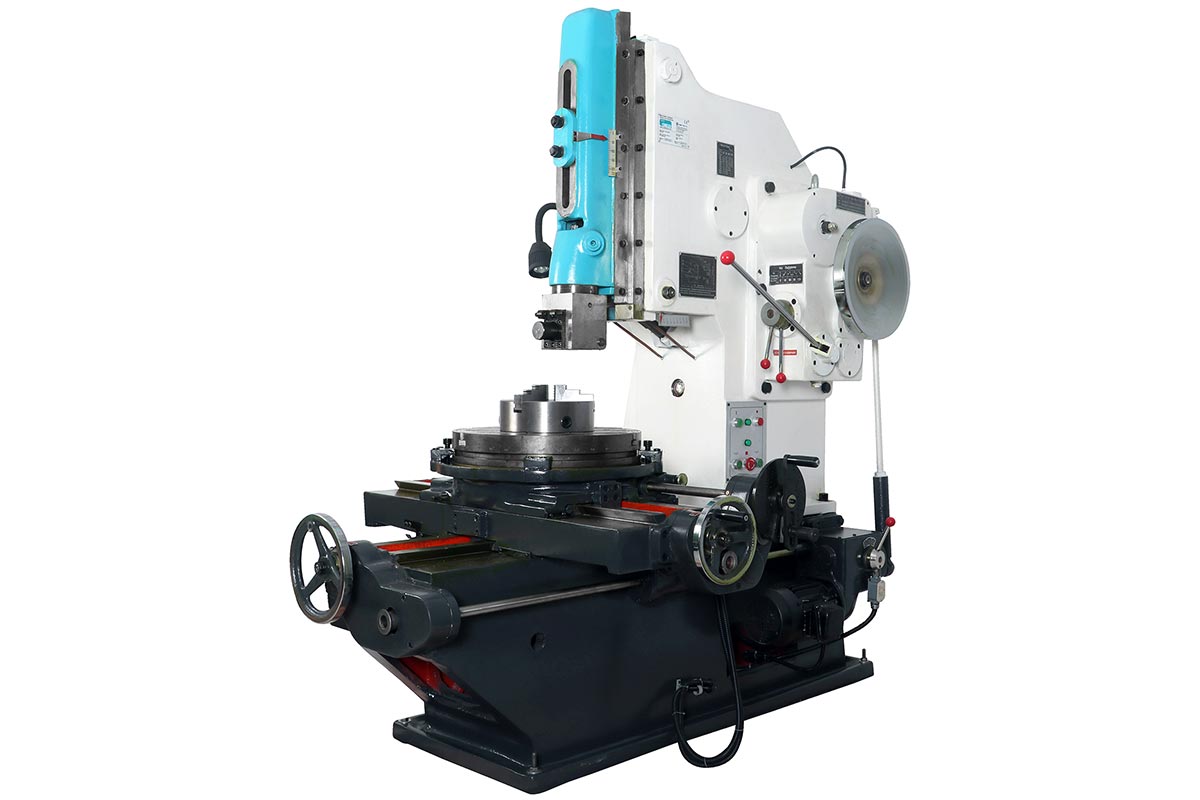

    PV5050E Vertical Shaping Machine

    It offers high-quality casting, a strong body, and a rigid structure. Equipped with automatic X and Y axis movement, lighting, and a Schneider electric system. Includes an emergency stop button.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    PV5050E VERTICAL SHAPING MACHINE

    High-quality casting

    Strong body, rigid structure

    Automatic/Motorized X and Y axis movement

    Lighting system

    Schneider electric system

    Emergency stop button

    SCOPE OF DELIVERY

    Tool kit

    Motor Power 7.5 kW 400 V w
    Stroke Length (Max.) 500 mm
    Ram Speed 9, 12.5, 18, 25, 36, 50 rpm
    Ram Tilt Angle ±10°
    Distance Between Table and Ram (Max.) 740 mm
    Table Diameter 1000 mm
    X Axis Travel 660 mm
    Y Axis Travel 1000 mm
    Table Rotation Angle 360°
    Automatic Feed (Forward-Backward, Right-Left) 0.1–1.2 mm
    Table Feed Range 3–36 mm/min
    Maximum Load Capacity 2000 kg
    Speed 1400 rpm
    Tool Holder Rotation Angle 360°
    Machine Dimensions (LxWxH) 3480x2085x3307 mm rpm
    Net Weight 10,300 kg
