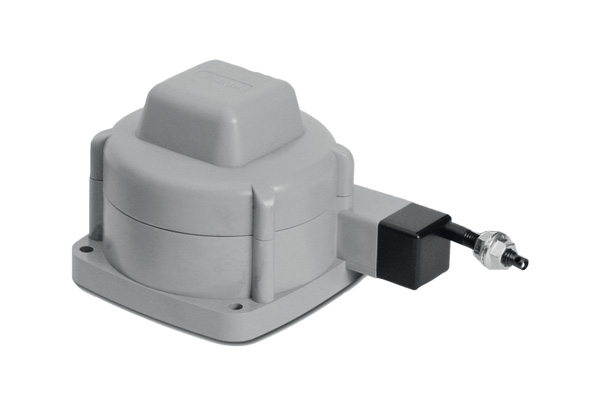

    PF1000-2000 Rope Potentiometer

    PF1000-2000 rope potentiometer is a rope potentiometer for the measurement of linear movements.

    It has a measurement length of 1000 or 2000 mm.

    Analog 4-20 mA or 0-10 VDC output options are available.

    It is insensitive to external factors such as dust, dirt, oil and sawdust thanks to a special sturdy body resistant to impacts.

    It has a robust measurement rope made of stainless steel.

    It has 0.5 m/s operating speed.

    High linearite: ± 0.25%.

    It can be easily assembled thanks to ready screw slots.

    It has a movement of up to 400,000 revolutions.

    Electrical connection can be made with 2, 5 or 10 m cable.

    Working temperature -10 ° C… +70 ° C
    Feeding voltage 15… 25 VDC
