    PFA2000 Rope Potentiometer

    The PFA2000 rope potentiometer is a rope potentiometer for the measurement of linear movements.Robust measurement wire made of stainless steel;It has easy installation features that are resistant to environmental factors.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

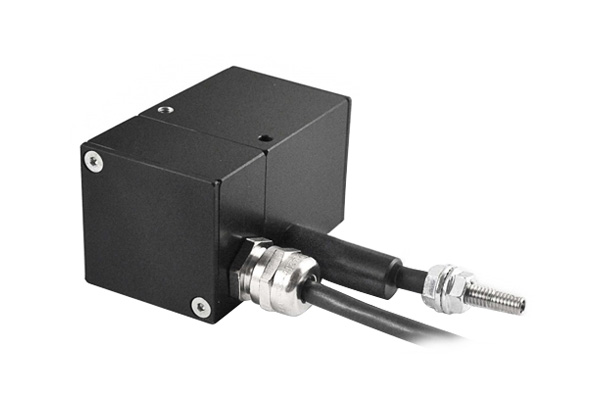

    PFA2000 Rope Potentiometer

    The PFA2000 rope potentiometer is a rope potentiometer for the measurement of linear movements.

    It has stroke length up to 2000 mm.

    Analog 4-20 mA or 0-10 VDC output options are available.

    It is insensitive to external factors such as dust, dirt, oil and sawdust thanks to a special sturdy body resistant to impacts.

    It has a robust measurement rope made of stainless steel.

    It has 0.3 m/s operating speed.

    High linearite: ± 0.25%.

    It can be easily assembled thanks to ready screw slots.

    It has an electrical connection with 2, 5 or 10 m cable.

    Working temperature -10 ° C… +70 ° C
    Feeding voltage 15… 25 VDC
