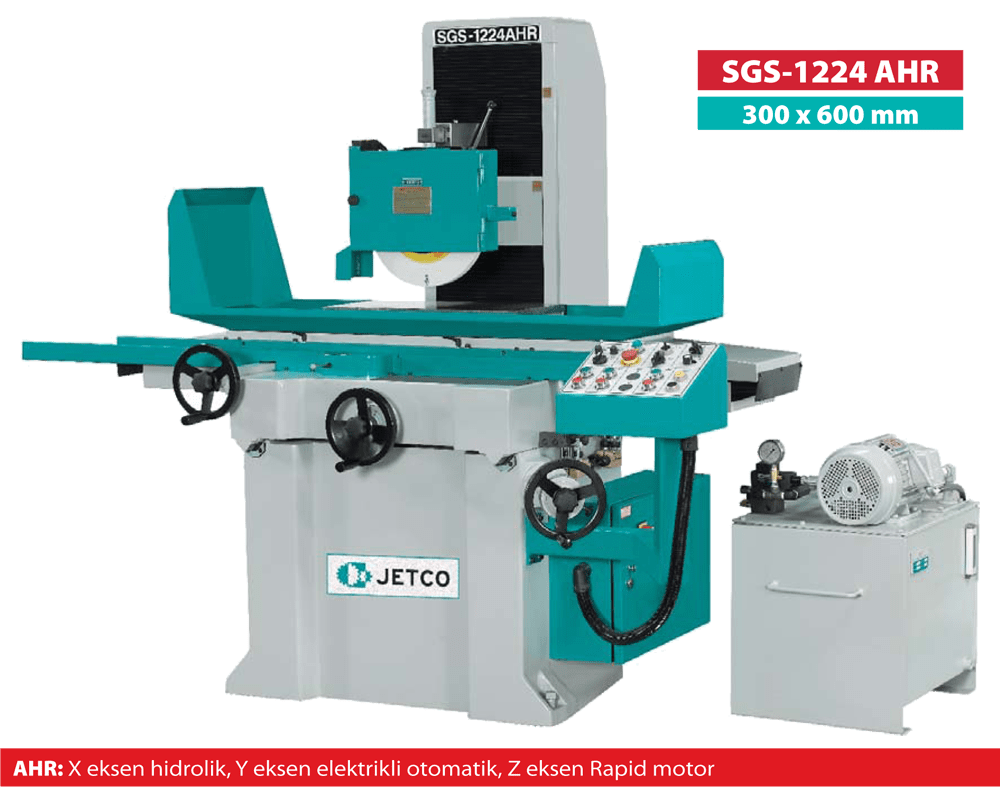

    JETCO SGS-1224AHR Surface Grinder Standard Accessories

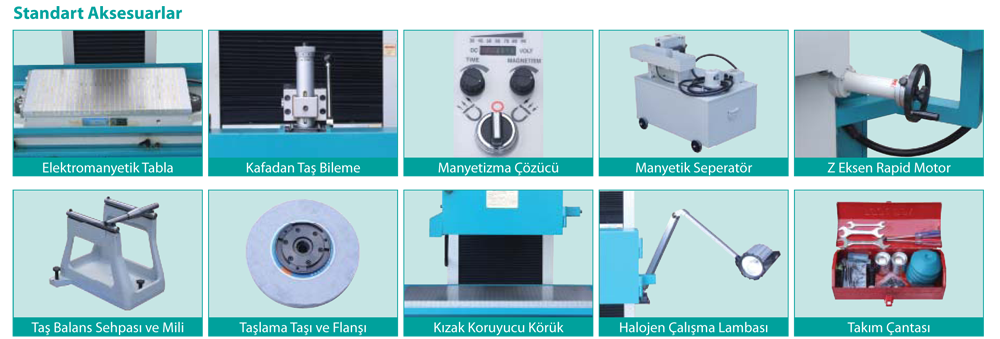

    Electromagnetic chuck, Overhead grinding, Demagnetizer, Magnetic separator, Z-axis rapid motor, Grinding wheel balancing stand and shaft, Grinding wheel and flange, Slideway protective bellows, Halogen work light, Tool box.

    TECHNICAL SPECIFICATIONS UNIT JETCO SGS-1224AHR SURFACE GRINDER
    Table Working Surface mm 300×600
    Maximum Grinding Surface mm 304×609
    Maximum Longitudinal Travel of Table mm 690
    Maximum Cross Travel of Table mm 332
    Distance Between Table Surface and Spindle mm 600
    Table Speed m/min 6~25
    Automatic Cross Feed of Saddle mm 0~9
    Vertical Movement (per division) mm 0.01
    Vertical Movement (per revolution) mm 2
    Cross Feed Movement (per division) mm 0.01
    Cross Feed Movement (per revolution) mm 4
    Longitudinal Feed Adjustment mm 50~609
    Cross Feed Adjustment mm 0~304
    Spindle Motor HP 5 x 4P
    Hydraulic Pump Motor HP 2 x 6P
    Cross Feed Motor HP 1/5 x 6P
    Down Feed Motor HP 1/5 x 6P
    Grinding Wheel mm 355 x 32 x 127
    Spindle Speed rpm 1450
    Coolant Motor HP 1/8
    Main Collector Motor HP 1/2 x 2P
    Net Weight kg 1850
    Gross Weight kg 2150
    Packing Dimensions mm 2260 x 1740 x 2210
