    SM060F0400B Servo Motor</strong>: 400W, 14mm shaft diameter, 60mm flange, 3000rpm, 1.27Nm, 17-bit Nikon encoder

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

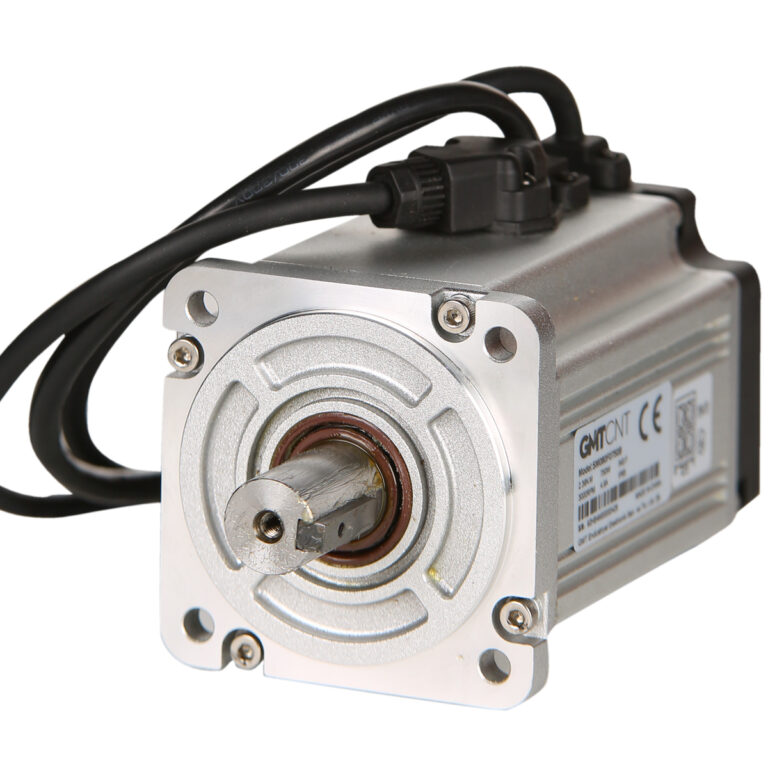

    SM060F0400B SERVO MOTOR

    SD Series Servo Systems offer solutions to machine manufacturers in industries such as testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with its compact design, Position/Speed/Torque control modes, and high performance.

    It is user-friendly with automatic motor recognition, USB port programming, and Easytune features.

    400W

    14mm shaft diameter

    60mm flange connection

    3000rpm

    17-bit Nikon encoder

    1.27Nm

    Nominal Voltage (VAC) 200-220
    Nominal Power (W) 400
    Nominal Torque (N.m) 1.27
    Peak Torque (N.m) 4.46
    Nominal Speed (rpm) 3000
    Peak Speed (rpm) 5000
    Nominal Current (Amp) 2.1
    Peak Current (Amp) 7.35
    Torque Constant (N.m/Amp) 0.605
    EMF Constant (V/krpm) 39
    Resistance (Ω) 5.7
    Inductance (mH) 12.5
    Inertia (kg*m²*10⁻⁴) 0.58
    Poles 10
    Encoder 17bit
    IP Rating IP65
    Weight (Kg) 1.55
