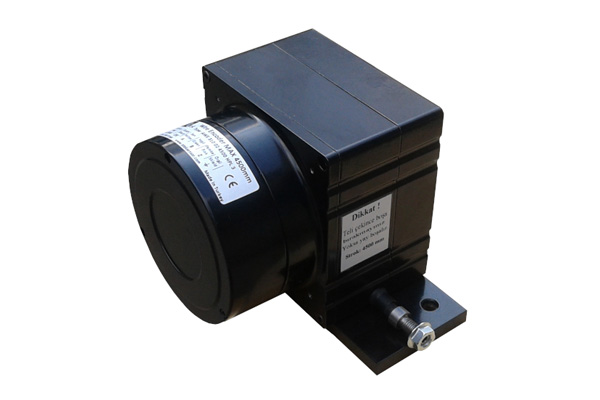

    AWP310 Rope Potentiometer

    AWP310 rope potentiometer potentiometric measurement, intact stainless steel rope, suitable for long -distance measurements, is resistant to shock and vibrations.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    AWP310 Rope Potentiometer

    AWP310 rope potentiometer has different strokes (measurement) ranging from 0 ... 5100 mm to 0 ... 11000 mm.

    ± 0.25%FS linearite.

    Potentiometric, 0-10 VDC or 4-20 MA analog output model options are available.

    IP53 (Optional IP67) has a protection class.

    Compact design.

    Easy to be installed.

    It has a maximum speed of 2 m/s.

    It has a shock / vibration -resistant structure.

    It has an aluminum anodized body.

    Working temperature -20… +85 ° C
    Feeding voltage In ‘A’ and ‘V’ models: 12 ... 30 VDC, in the potentiometric model: 42V Max.
