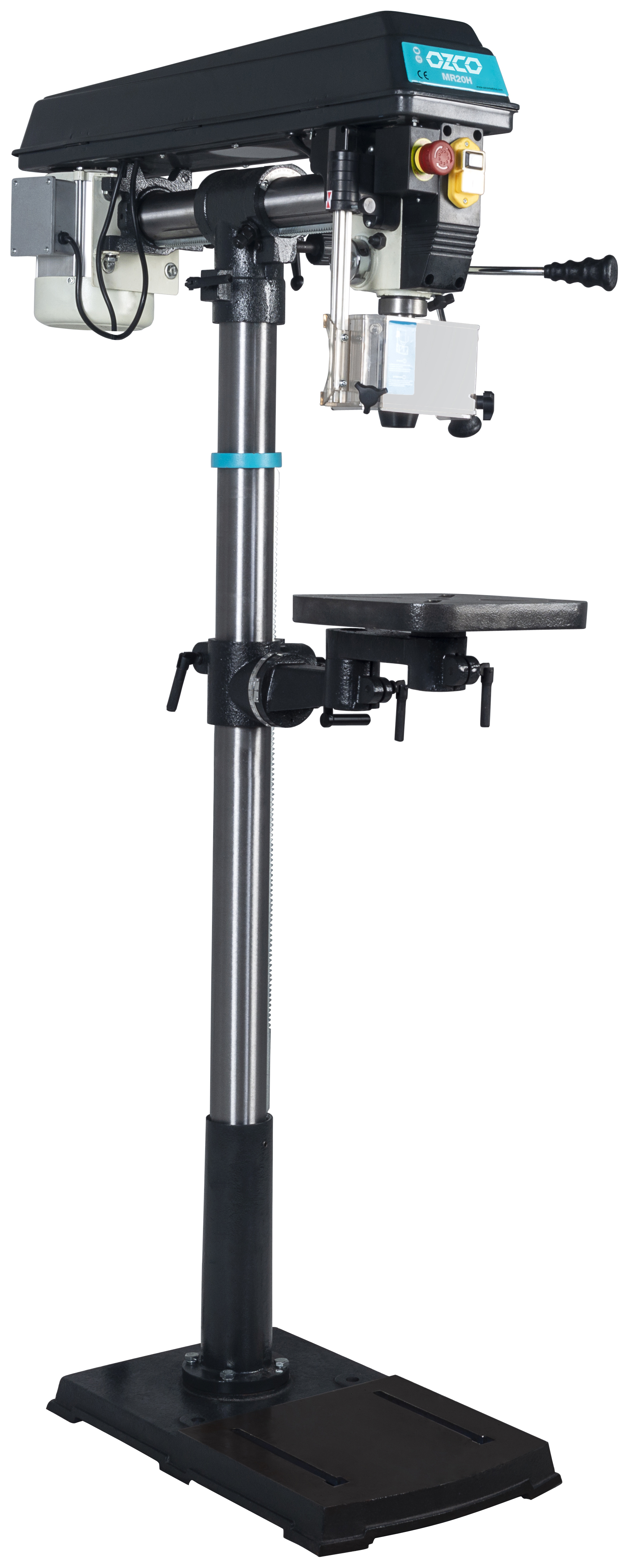

    MR20H Column Radial Drilling Machine

    The MR20H Column Radial Drilling Machine is a durable, safe, and high-precision product designed for industrial use. With its wide rotary movement capabilities and powerful motor, it meets the expectations of professional users.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    MR20H COLUMN RADIAL DRILLING MACHINE

    Compliant with CE standards

    Emergency Stop Button

    Guard/chuck protector with safety switch

    Belt-pulley cover with safety switch

    Height-adjustable guard

    Dual-sided motor belt tension adjustment

    Durable, high-efficiency copper-wound motor

    Cross "X" channel table

    Depth measurement and locking system

    Ergonomic rubber grip handle for easy holding

    Aluminum belt pulley cover

    High-quality cast table

    Drill head that can rotate 45° right, 90° left

    Cast table that can rotate 360° and tilt ±45°

    Precision keyless chuck

    Cast base providing low vibration and stable operation

    DELIVERY CONTENT

    MK4-B16 Morse taper

    1-16mm B16 chuck

    2 T-slot nuts

    OPTIONAL ACCESSORIES

    110102: MK2-B16 Drill Morse taper

    190002: MK2 Automatic tapping M5-M12

    Motor Power 750 W, 230 V w
    Operation Type Belt-driven
    Drilling Capacity 20 mm
    Distance Between Spindle and Column 115-420 mm
    Spindle Taper MK2
    Spindle Travel/Stroke 100 mm
    Speed 465-3000 rpm
    Gear Steps 5
    Table Size 265x265 mm
    T Slot Size 14 mm
    Table Rotation ±45° / 360°
    Distance Between Spindle and Table 700 mm
    Distance Between Spindle and Base 1190 mm
    Base Size 590x340 mm
    Column Diameter 70 mm
    Length x Width x Height 1160x510x320 mm
    Net Weight 70 kg
