Single Acting H Type Presses | H

H-type single acting presses, with a capacity of up to 3000 tons, can be used for processes such as bending, forming, punching, and cutting. Manufactured in standard sizes, these presses can be customized according to customer needs and provide high-quality production with their precise chassis design. Optional parts are available.

Whatsapp

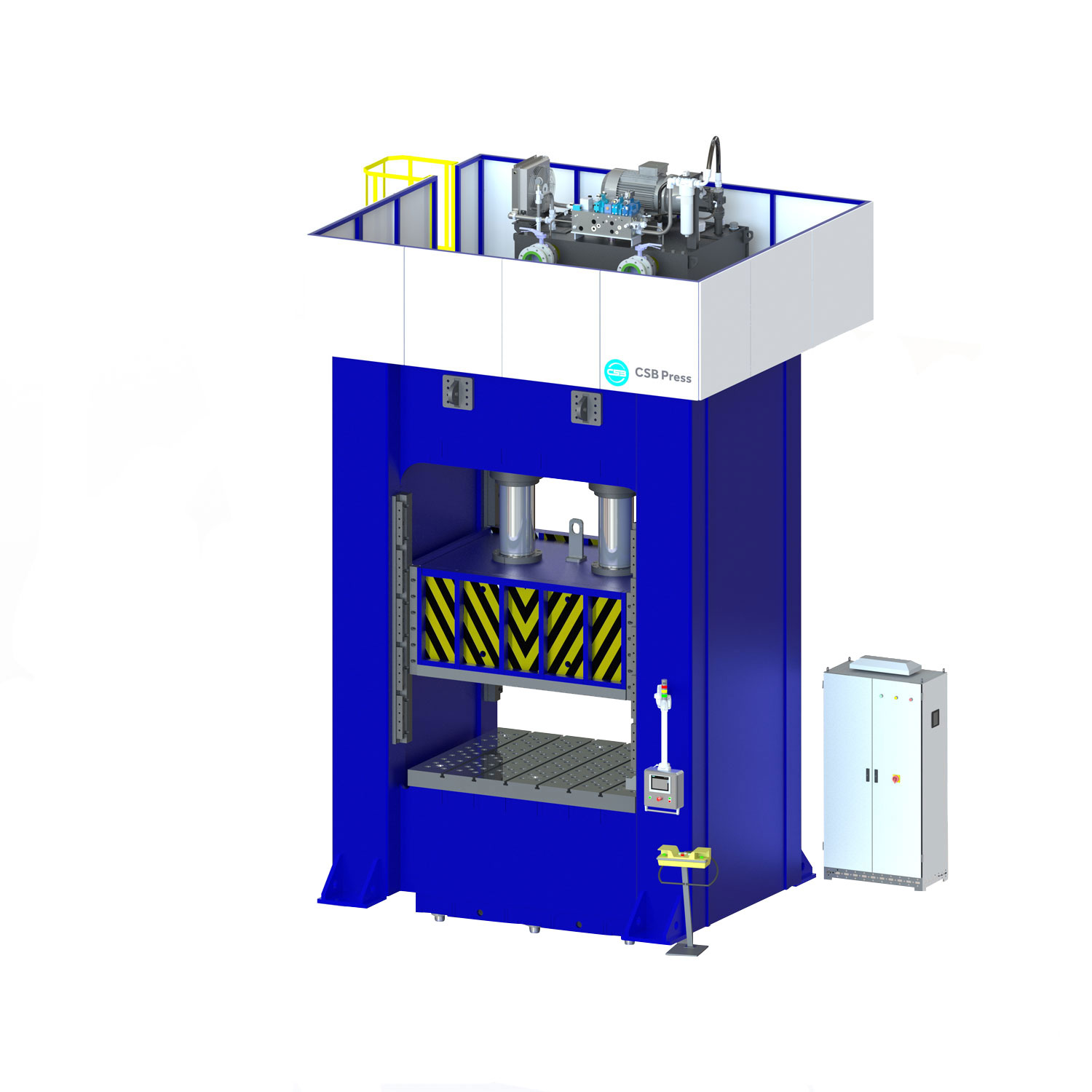

SINGLE ACTING H TYPE PRESSES | H

H-type presses, with a capacity of up to 3000 tons, are produced in standard sizes but can be customized according to customer needs. Depending on the molds used, these presses can be used for various purposes such as bending, forming, punching, cutting, and straightening.

To facilitate the loading of molds, special mold loading fixtures or alternative solutions can be offered upon request.

The chassis and tables, produced with high precision, ensure that you obtain precise and high-quality products in your production process.

STANDARD PARTS

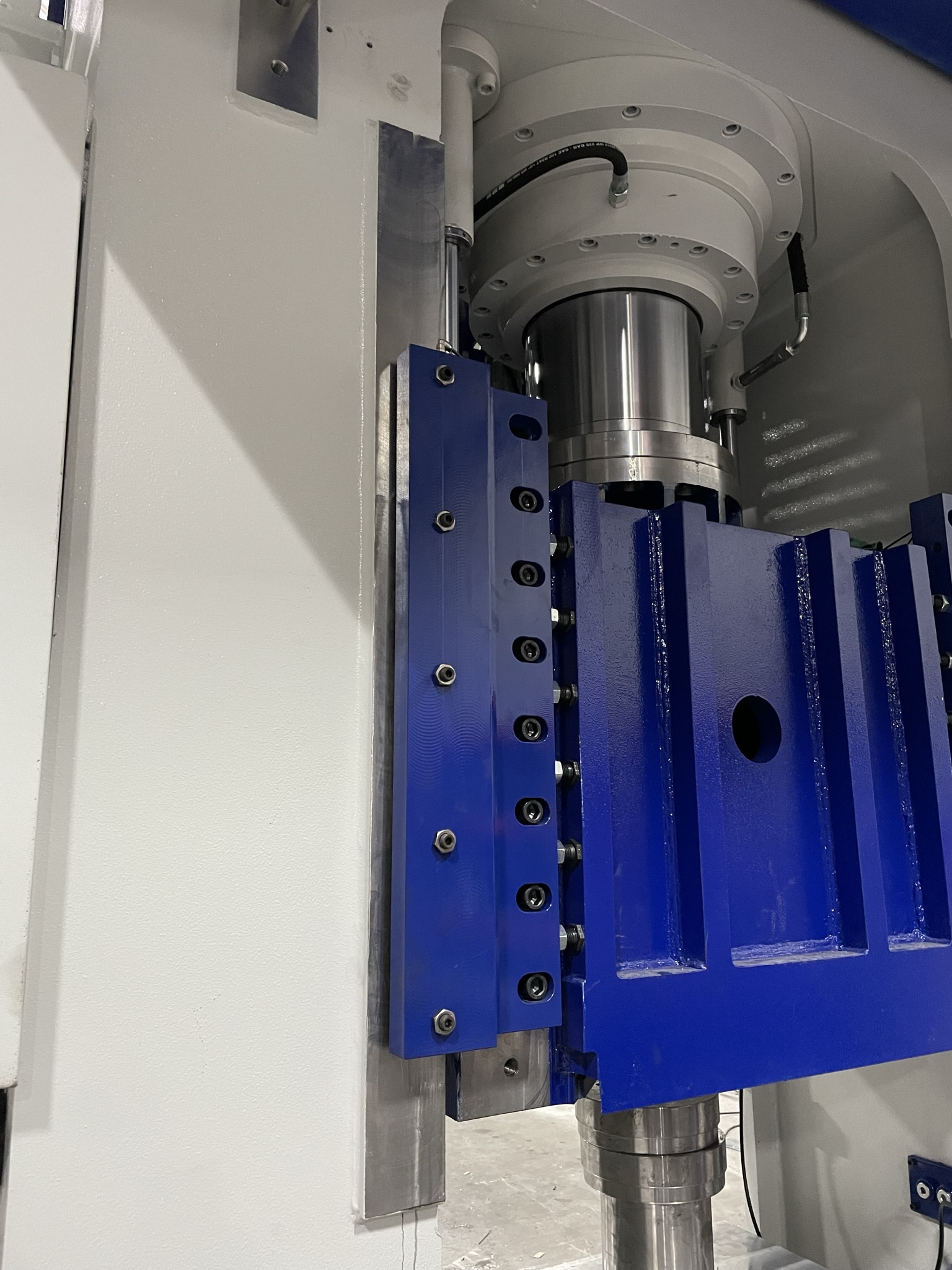

Chrome Plated Cylinder

Boiled Steel Body

HMI Touch Control Panel

Protection Cover and Light Barrier

Control with Dual Hand Buttons

Adjustable Pressure

Adjustable Stroke

Pressure Gauge

Lubrication

Cooler

T-Slot Table

User Manual

1-Year Warranty

OPTIONAL PARTS

Ejector Cylinder

Speed Adjustment

Mold Sliding Fixture

Model H 100 H 200 H 300 H 400 H 500 H 600 H 800 H 1000 H 1500 H 2000 H 3000
Capacity (ton) 100 200 300 400 500 600 800 1000 1500 2000 3000
Table Size (mm) 800x1000 800x1000 1000x1200 1200x1400 1200x1500 1500x1700 - - - - -
Stroke (mm) 1000 1000 1000 1000 1000 1000 - - - - -
Receiving Length (mm) 1000 1000 1000 1000 1000 1000 - - - - -
Motor Power (kw) 22 22 22 30 30 37 - - - - -
Pump (L) 48 48 87 116 116 210 - - - - -
Descending Speed (mm/s) 100 100 100 100 100 100 - - - - -
Return Speed (mm/s) 140 140 140 140 140 110 - - - - -
Working Speed (mm/s) 15 8 10 10 8 15 - - - - -
Overall Dimensions (LxWxH) mm 2200x2100x4200 2200x2100x4200 2400x2300x4500 2600x2500x4700 2600x2500x4900 3000x2800x5500 - - - - -
Weight (kg) 8000 10000 15000 20000 23000 30000 - - - - -
