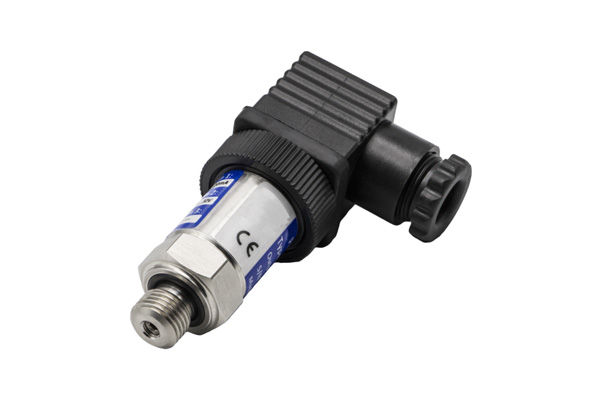

    BCT 22 Pressure Transmitter

    The BCT 22 Pressure Transmitter features a stainless steel body, high accuracy, EMC and reverse polarity protection, and a small, compact design.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    BCT 22 Pressure Transmitter

    Piezoresistive operating principle

    Stainless steel body (1.4305)

    Optional 316L or titanium body

    Different models ranging from 100 mBar to 600 Bar

    Analog 4-20mA / 0-10V, etc. different outputs

    CANopen output

    >±%0.5 F.S or ±%0.3 F.S accuracy

    IP65 or IP67 protection class

    Compact design

    Operating Temperature -40°C ... +80°C
    Electrical Connection Socket models: DIN43650-A, DIN46350-C, M12, Packard, or PUR Wired 3 x 0.14mm (4.9mm cable)
    Power Supply 4-20 mA: 12 ... 30 VDC, 0-10 V: 12 ... 30 VDC, Ratiometric: 5 VDC
