    ERPA1

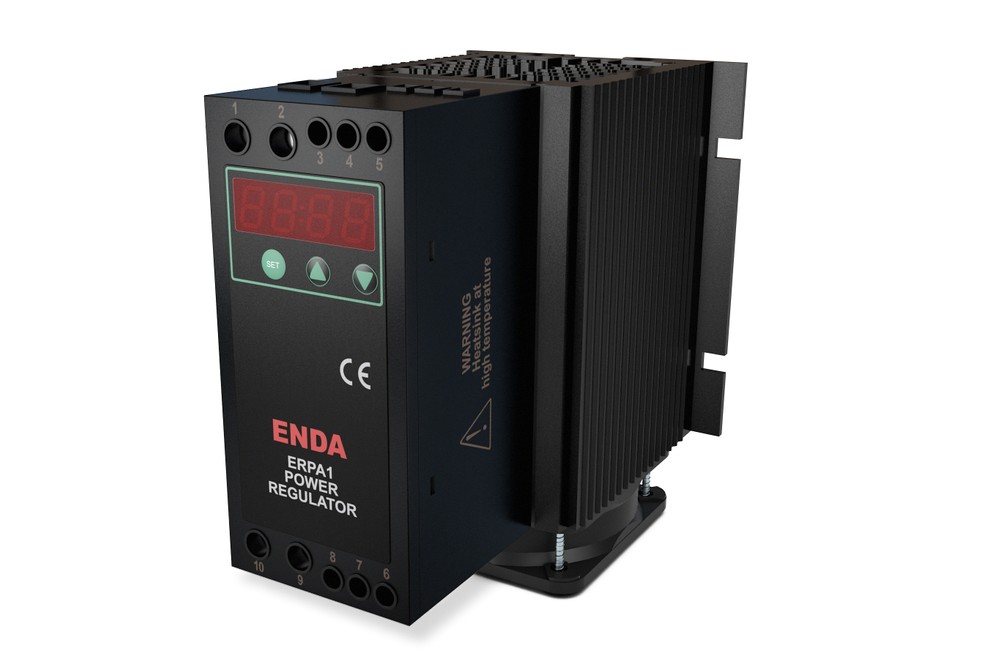

    Multi Input Signal 180-320V AC, 180-480V AC, 180-500V AC Load Voltage Power Regulator

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    ERPA1

    40-50-70A AC load current

    280V AC, 480V AC or 500V AC load voltage

    0/4-20mA, 0/1-5V DC, 0/2-10V DC or 1kohm to 10kohm potentiometer input

    4-digit LED display

    Phase angle or zero crossing control

    Soft Start or Kick Start for motor starting

    Overheating alarm output

    Varistor protection for peak voltages

    RS-485 ModBus protocol communication

    CE certified according to EN standards

    Ambient/Storage Temperature -25...60 °C / -30...100 °C
    Relative Humidity Operates up to 50% at 40°C, increasing linearly to 90% at 20°C
    Protection Class IP20, according to EN 60529 standard
    Altitude Maximum 1000m
    Power Supply 90-250V AC, 50/60Hz
    Input Signal 0/4-20mA, 0/1-5V DC, 0/2-10V DC or 1kohm to 10kohm potentiometer
    Transmission Signal >0.2mA (for mA input), >0.08V (for V input)
    Cutoff Signal <0.18mA (for mA input), <0.075V (for V input)
    Response Time 15ms
    Input Impedance <100ohm (for mA input), >10kohm (for V input)
    Protection Protection against reverse connection of input signal
    Load Current (Arms) ERPA1-240-F: 40
    ERPA1-440-F: 40
    ERPA1-550-F: 50
    ERPA1-570-F: 70
    Load Voltage (Vrms) ERPA1-240-F: 180-280
    ERPA1-440-F: 180-480
    ERPA1-550-F and ERPA1-570-F: 180-500
    Frequency (Hz) 50-60
    Power Factor (Cosø) >0.75
    Alarm Output 250V AC, 3A NO or NC selectable via programming
    Mounting Type Can be mounted on TH35 type rail
    Dimensions ERPA1-x40-F and ERPA1-550-F: W46xH110xD117 mm
    ERPA1-570-F: W79xH120xD132 mm
    Weight ERPA1-x40-F and ERPA1-550-F: 450g (including packaging)
    ERPA1-570-F: 550g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
