EMS-7500 Nuve Coordinate Measurement Table

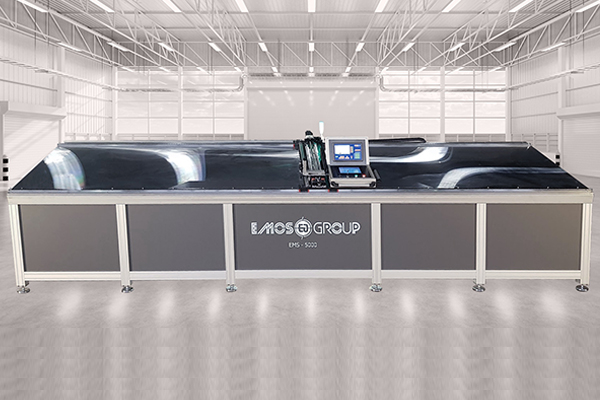

The EMS-7500 Nuve Measurement Tables are designed to simplify your quality control processes for measuring the length, width, and angles of your workpieces. It operates within a measurement range of 7500 x 1500 mm. It is manufactured with two or three axes, servo motor-controlled axis systems.

PDF

Whatsapp

EMS-7500 NUVE COORDINATE MEASUREMENT TABLE

The **EMS-7500 Nuve Measurement Table** is designed to simplify your quality control processes for measuring the length, width, and angles of your workpieces.

The **EMS-7500 Nuve Coordinate Measurement Table** is used for measuring and inspecting parts and surfaces, cross-sectional images, semi-automatically and manually.

It offers high-precision, safe, fast, and contactless measurement capabilities.

The table is manufactured with a 15-degree angle for easy workpiece loading.

Nuve Coordinate Measurement Table Specifications

It operates within a measurement range of 7500 x 1000 mm.

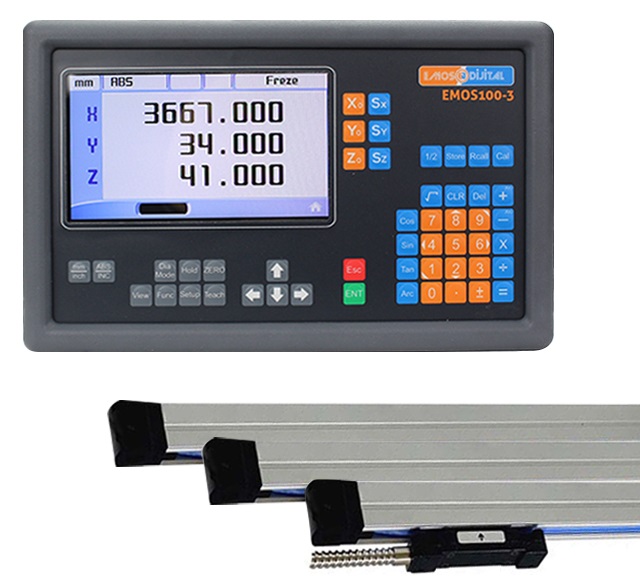

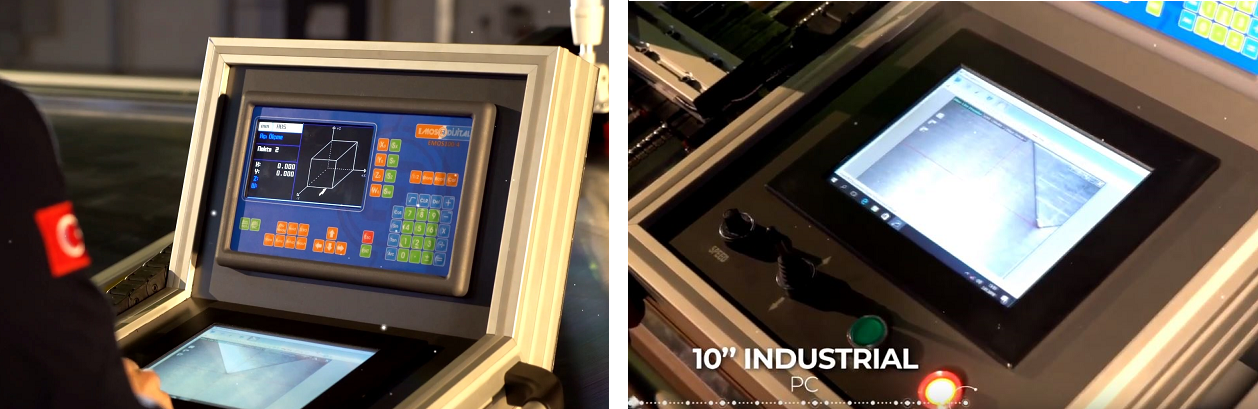

With a 10" Industrial PC and a 7" Color LCD Digital Display, it integrates with our special software for seamless operation.

You can perform practical measurements with the 2D Workpiece Simulation Function.

There are 1000 part error compensation points.

With high-resolution, contactless linear scales, near-perfect accuracy can be achieved.

It has a resolution of 0.001 mm (1µm) and 0.005 mm (5µm).

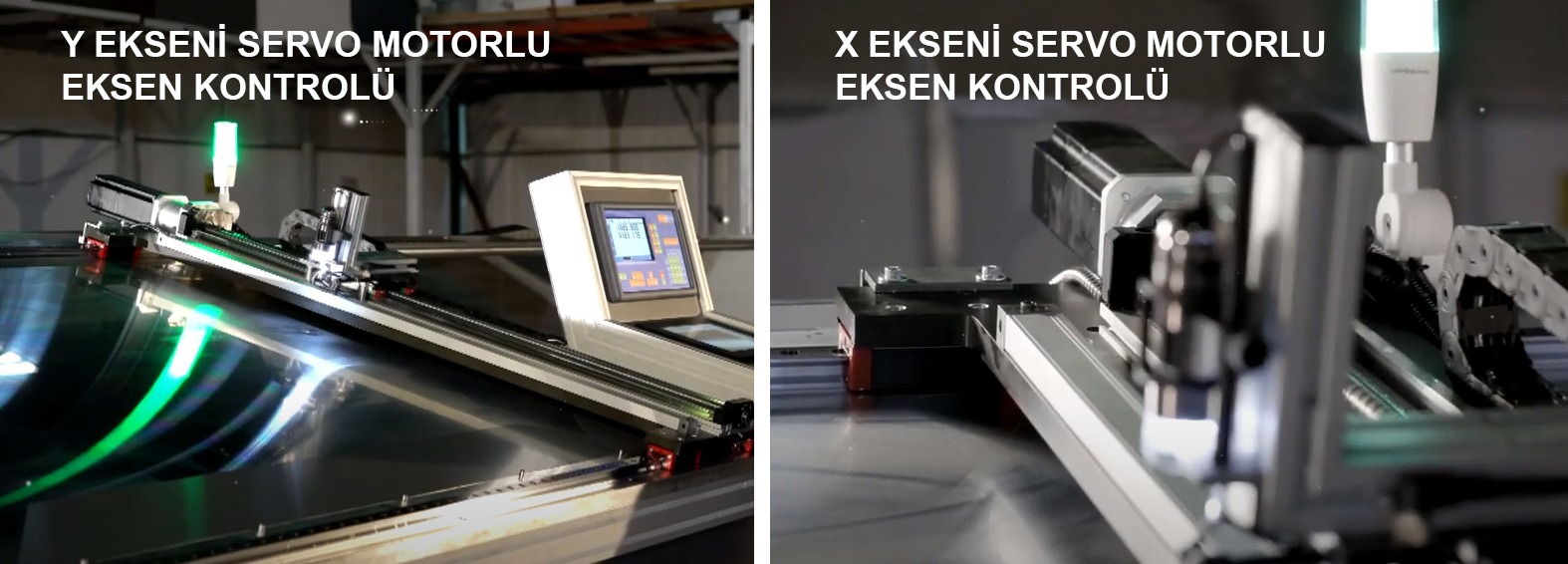

The X and Y axes are servo motor-controlled.

The system operates manually or semi-automatically with one or two axes.

Contactless measurements can be obtained with a 5-megapixel industrial camera.

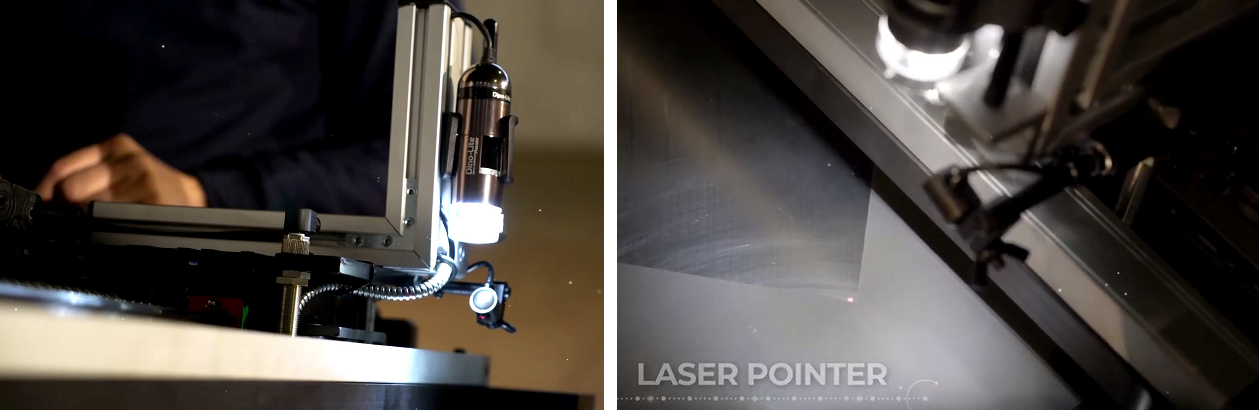

You can locate the workpiece and take measurements easily with a Laser Pointer without touching the workpiece.

The system is specially designed for Nuve Measurements.

We can produce different versions and multi-axis versions upon request.

Resolution 1µm, 5µm
Body Material Aluminum
Digital Display 7" Color LCD, Color Screen, Multifunctional Power: 220Vac, Aluminum Body
X Axis Working Distance 7500mm
Y Axis Working Distance 1500mm
Plate-Table Material Ground Aluminum
Plate-Table Thickness 30mm
Plate-Table Angle 15°
Linear Scales Magnetic Encoder, Optical Scale
Industrial PC 10.1ʺ
Y Axis Control 0.4 Kw Servo Motor / Driver
Y Axis Speed Control 5 Kohm Infinite Turn Potentiometer, 2-Way Joystick
Laser Type and Color Dot-Red
PLC Analog Input PLC
Laser Power 1 mW – 5Vdc – 220 Vac
Linear Rail System Schneeberger 25 mm - Linear Guideway: MRS 25 N, Roller Car: MRW 25 D G2 V3
Software Language English
Approximate Weight 2250 Kg

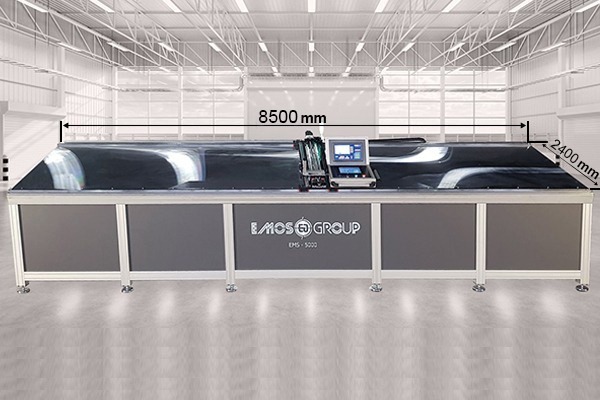

Machine Dimensions Length 8500 mm - Width 2400 mm - Height 950 mm
Precision ±1.0%FS
