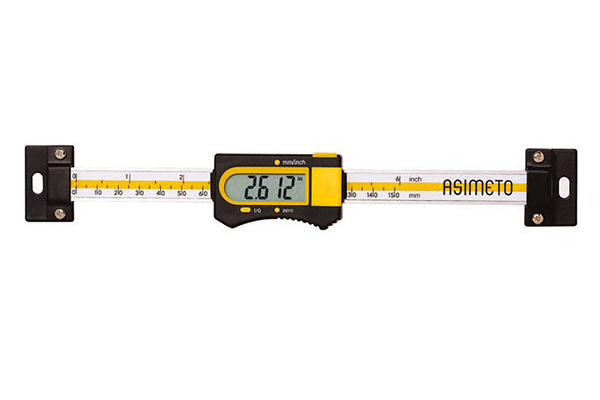

    ASIMETO MAGNETIC LINEAR SCALE - HORIZONTAL

    ASIMETO Magnetic Linear Scales are used in lathes, milling machines, boring machines, grinding machines, and other special machinery as well as in automation applications.

    These magnetic scales measure without mechanical friction between the reader sensor and the scale, providing a contactless measurement.

    They are suitable for use in vertical measurement areas.

    Operates with an LR44 battery.

    It functions in incremental and absolute modes.

    Has a 0.10 µm (0.01) standard resolution.

    Available for measurement/stroke lengths up to 1 meter.

    With an IP67 protection class, they are resistant to oil, water, dust, etc.

    Due to their caliper-like design, they can be applied to narrow machine areas.

    Resolution 10µm
    Supply Voltage LR44 Battery
    Operating Principle Magnetic

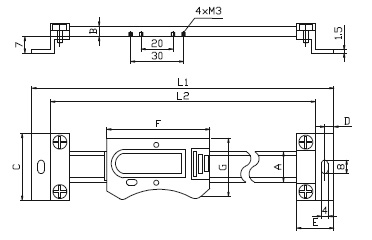

    Capacity A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) L1 (mm) L2 (mm)
    0-100 mm 16 4 36 6 24 58 34 209 185
    0-150 mm 16 4 36 6 24 58 34 259 135
    0-200 mm 16 4 36 6 24 58 34 310 286
    0-300 mm 16 4 36 6 24 58 34 444 420
    0-450 mm 16 4 36 6 24 58 34 - -
    0-600 mm 24 5.5 45 8 32 92 40 482 750
    0-800 mm 24 5.5 45 8 32 92 40 980 950
    0-1000 mm 31 10.6 60 10 40 124.5 54 1240 1200
