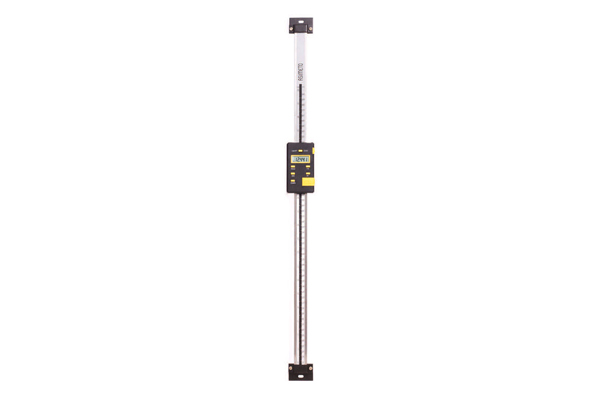

    ASIMETO MAGNETIC LINEAR SCALE - VERTICAL

    ASIMETO Magnetic Linear Scales are used in lathes, milling machines, boring machines, grinding machines, special machines, and automation applications.

    The EMS310 Magnetic Scales measure contactless due to the absence of mechanical friction between the reader sensor and the scale.

    They are suitable for use in vertical measurement areas.

    They operate with an LR44 battery.

    They function in incremental and absolute modes.

    The scales have a 0.10 µm (0.01) standard resolution.

    They are produced for measurement/stroke lengths of up to 1 meter.

    With an IP67 protection class, they are resistant to oil, water, dust, etc.

    Due to their caliper-like design, they can be applied in narrow machine areas.

    Resolution 10µm
    Supply Voltage LR44 Battery
    Operating Principle Magnetic

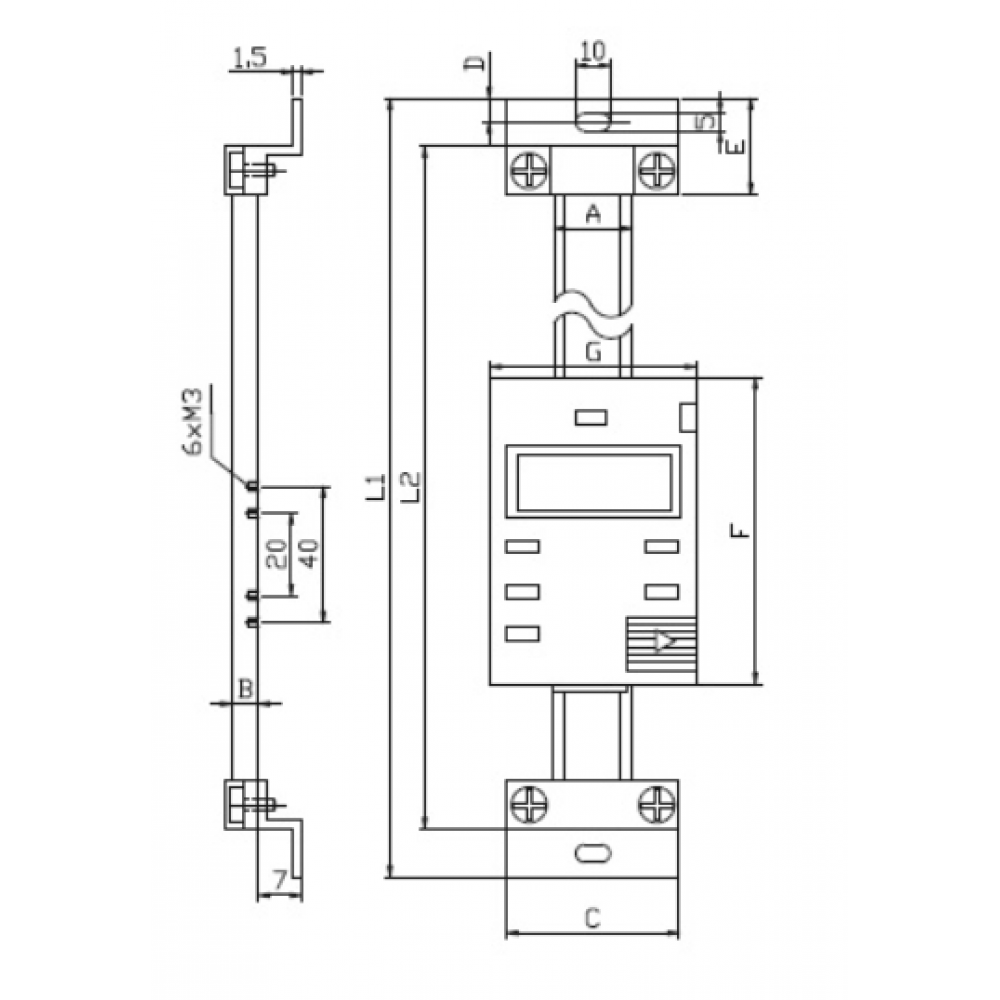

    Capacity A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) L1 (mm) L2 (mm)
    0-100 mm 20 4 40 6 24 70 40 244 220
    0-150 mm 20 4 40 6 24 70 40 294 270
    0-200 mm 20 4 40 6 24 70 40 344 320
    0-300 mm 20 4 40 6 24 70 40 444 420
    0-450 mm 20 4 40 6 24 70 40 - -
    0-600 mm 24 5.5 45 8 32 92 40 782 750
    0-800 mm 24 5.5 45 8 32 92 40 982 950
    0-1000 mm 31 10.6 60 10 40 124.5 54 1240 1200
