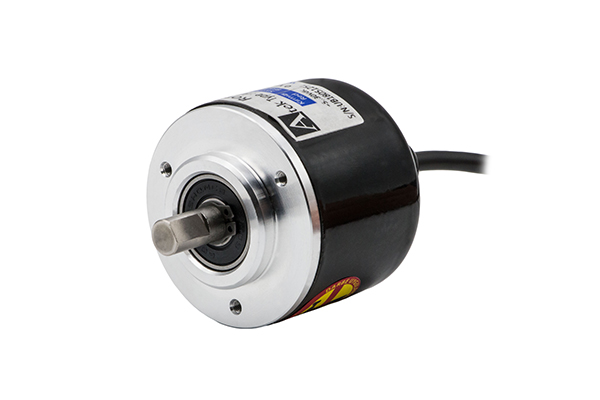

    ARS S 50 Shaft, Rotary Enkoder with SSI output

    ARS S 50 Shaft, Rotary ENCODER INCREENTAL SENSITIVE MEASUREMENT WITH SSI output, 50 mm body diameter, magnetic principle, as it works very resistant to environmental conditions, has different shaft thickness options features.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    ARS S 50 Shaft SSI Rotary Enkoder

    Magnetic principle inkremental measurements.

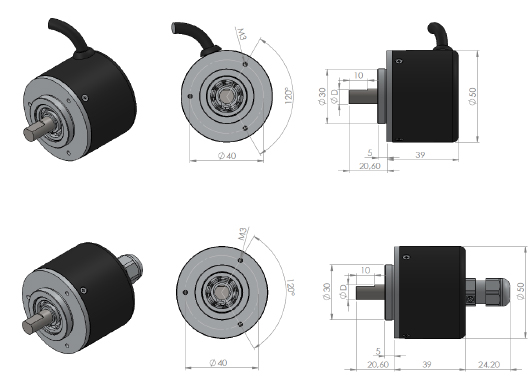

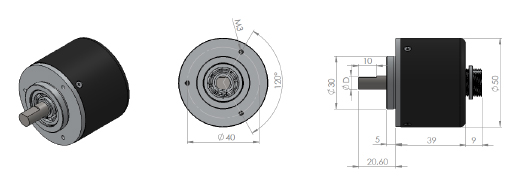

    It has a body diameter of 50 mm.

    It has 6 mm, 8 mm or 10 mm shaft options.

    It has a 12 -bit angular resolution value.

    It has 3000 RPM operating speed.

    It has SSI interface.

    It has high sensitivity.

    IP54 protection class.

    Resolution 12 bit
    Working temperature -40… +85 ° C
    Protection class IP54
    Supply voltage 5 - 24 VDC
    Truth ≤ ± 0.25 %
