    LF20 Laser Welding Machine

    It is environmentally friendly with low energy consumption and performs welding 4-6 times faster than traditional methods. It is easy to use, provides smooth seams, and reduces the need for grinding. The laser light does not cause damage in narrow spaces, and the low heat input prevents deformation and cracks.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

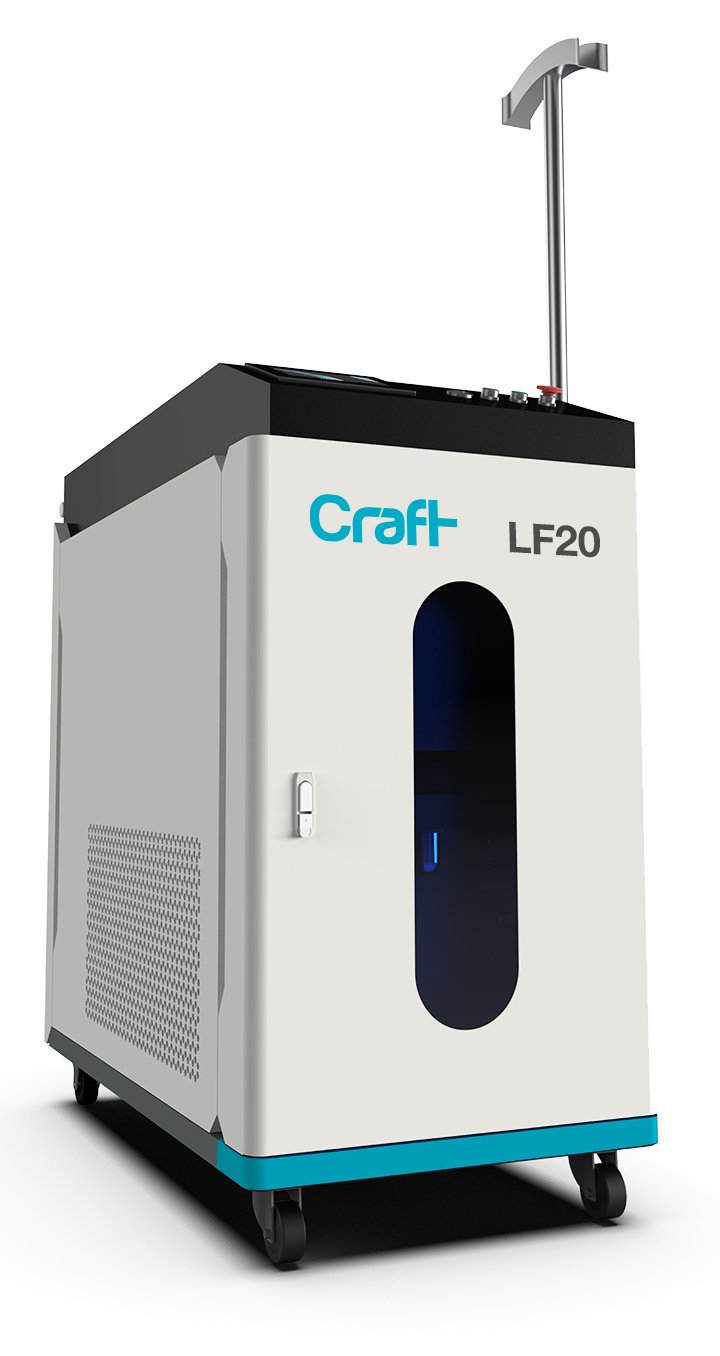

    LF20 LASER WELDING MACHINE

    Low power consumption provides significant energy savings and is environmentally friendly.

    It performs welding much faster than traditional methods. It is 6 times faster than argon welding and 4 times faster than MIG welding.

    While traditional methods require a highly skilled master, laser welding is much easier to use.

    The weld seam is smooth. After welding, grinding or cleaning needs are minimized. It saves on labor costs.

    Thanks to the laser light, welding can be performed even in tight spaces without causing damage.

    Since the heat input for welding is very low, no deformation occurs in materials and no microcracks are formed.

    SHIPMENT CONTENT

    Automatic wire feeder with 15 kg capacity (dual-axis, 4x rollers)

    5 nozzles (including cutting nozzle)

    5 protective lenses

    1 pair of protective goggles

    1 tool bag

    Laser Power 2000 W
    Voltage 220V, 50-60 Hz
    Welding Penetration Stainless Steel: 5mm, Carbon Steel: 4mm, Aluminum: 3mm, Galvanized Sheet: 3mm, Copper: 2mm
    Laser Cooling Type Industrial thermostatic water tank
    Laser Wavelength 1080 Nm, ± 5 Nm
    Spot Diameter 0.2-1.8 mm
    Torch Length 10 m
    Modulation Frequency 1-20,000 Hz
    Machine Dimensions (LxWxH) 1130x650x1120 mm
    Weight 270 kg
