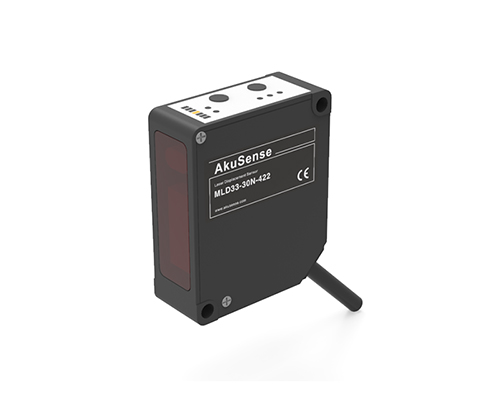

    MLD33 Laser Distance Sensors

    The MICROSENSOR MLD33 series is designed to remain highly stable while detecting over long distances. It operates in both PNP and NPN configurations. It provides non-contact measurement up to 400 mm.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    MLD33 LASER DISTANCE SENSORS

    Microsensor MLD33 provides safe detection.

    The MICROSENSOR MLD33 series is designed to remain highly stable while detecting over long distances.

    It is easy to install and calibrate.

    Flexible mounting options, a visible beam spot, the ability to be taught with a single button, and a user-friendly display allow for quick setup.

    Even at long distances, you can easily track the detection of the product with the LED indicator.

    It has a detection range of up to 400 mm.

    Laser Class Class 2
    Ambient Temperature -10°C...+50°C
    Protection Class IP67
    Linearity ±%0.2 FS
    Repeatability ± 0.1 %
    Power Supply Voltage 12-24Vdc ±10%
    Signal Output NPN, PNP, 4-20 mA, 0-10 Vdc
    Laser Light Source Laser 650 nm
    Laser Light Diameter 10 mm
    Laser Working Range 26...34 mm, 40...60 mm, 65...105 mm, 60...180 mm, 100...400 mm
    Laser Detection Type Diffuse-Reflection
    Laser Refresh Time ≤ 2 ms
