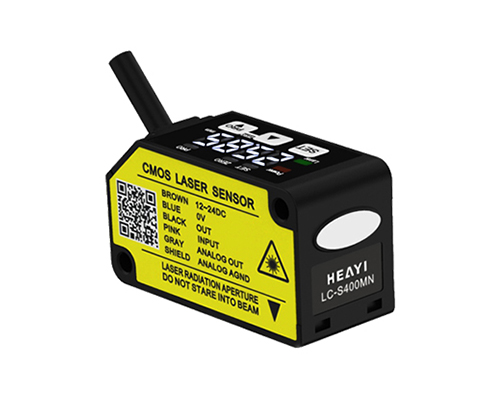

LC-S CMOS Laser Distance Sensor

The MICROSENSOR LC-S series is designed to provide stable detection over long distances. It operates in both PNP and NPN configurations. It offers contactless measurement up to 600 mm.

Whatsapp

LC-S CMOS LASER DISTANCE SENSOR

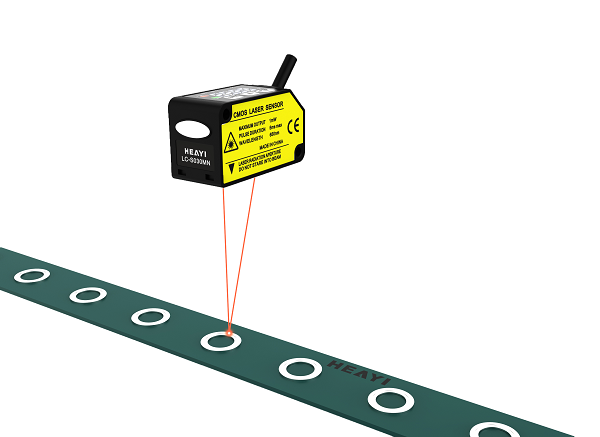

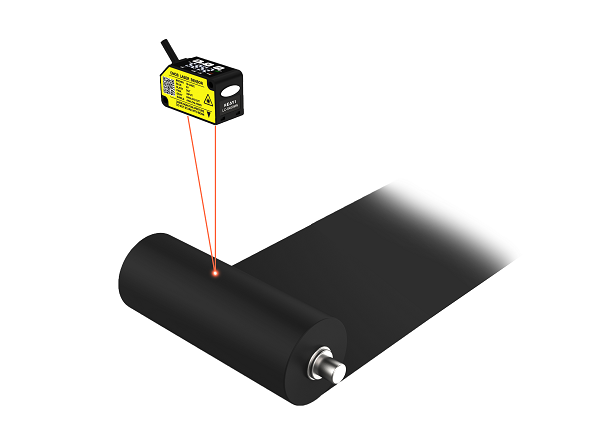

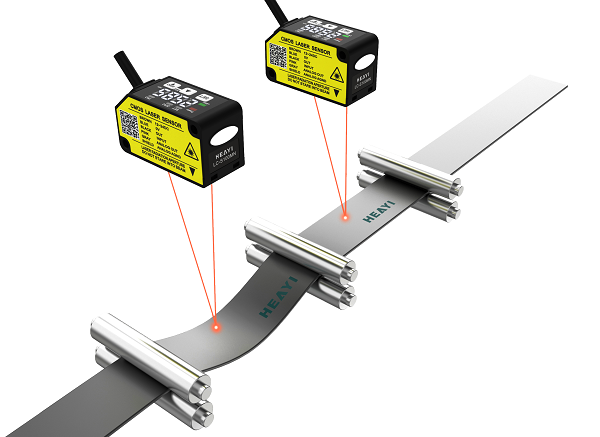

The Microsensor LC-S CMOS sensor provides safe detection.

The **MICROSENSOR LC-S CMOS** series is designed to provide stable performance while detecting over long distances.

Installation and calibration are easy.

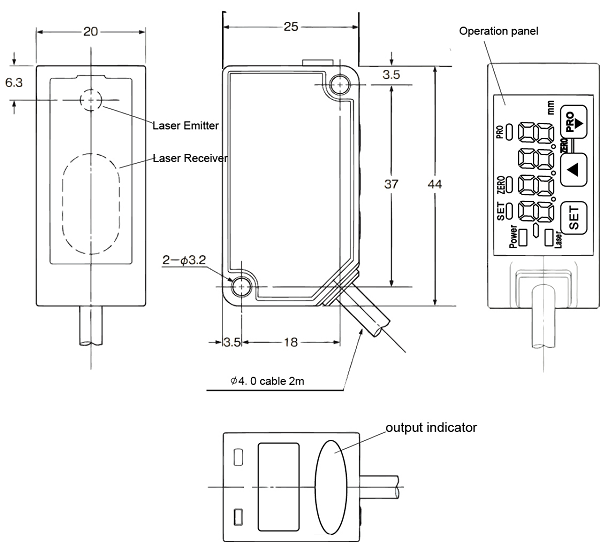

Flexible mounting options, a visible laser spot, teachable with a single button, and an easy-to-read display ensure fast setup.

Even at long distances, you can easily track the product's detection with the LED indicator.

It has a detection range of up to 600 mm.

Thanks to the CMOS image sensor, it is possible to perform high-precision measurements with ±0.2% F.S.

Laser Class Class 1, Class 2
Ambient Temperature -10°C...+50°C
Protection Class IP67
Linearity ±%0.2 FS
Repeatability 300µm (Measuring distance 200mm - 400mm), 800µm (Measuring distance 400mm - 600mm)
Supply Voltage 12-24Vdc ±10%
Signal Output NPN, 4-20 mA, 0-5 Vdc
Laser Light Source Laser 650 nm
Laser Spot Diameter 500 Micron

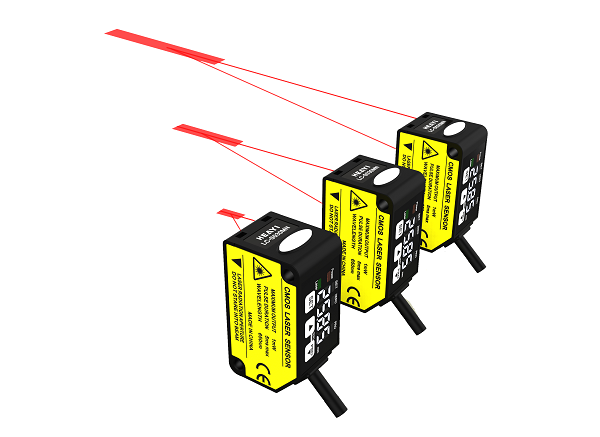

Laser Working Range 200...600 mm
Laser Detection Type High Resolution
Laser Refresh Time 1.5 ms



Type Model Detection Range Output Type Repeatability
Short Range Type LC-S030N 30 ± 5mm Switch Output Type 10 µm
LC-S030MN 30 ± 5mm Switch + Analog 10 µm
LC-S030P 30 ± 5mm Switch Output Type 10 µm
LC-S030MP 30 ± 5mm Switch + Analog 10 µm
Medium Range Type LC-S100N 100 ± 35mm Switch Output Type 100 µm
LC-S100MN 100 ± 35mm Switch + Analog 100 µm
LC-S100P 100 ± 35mm Switch Output Type 100 µm
LC-S100MP 100 ± 35mm Switch + Analog 100 µm
Long Range Type LC-S400N 400 ± 200mm Switch Output Type 400 µm / 800 µm
LC-S400MN 400 ± 200mm Switch + Analog 400 µm / 800 µm
LC-S400P 400 ± 200mm Switch Output Type 400 µm / 800 µm
LC-S400MP 400 ± 200mm Switch + Analog 400 µm / 800 µm
