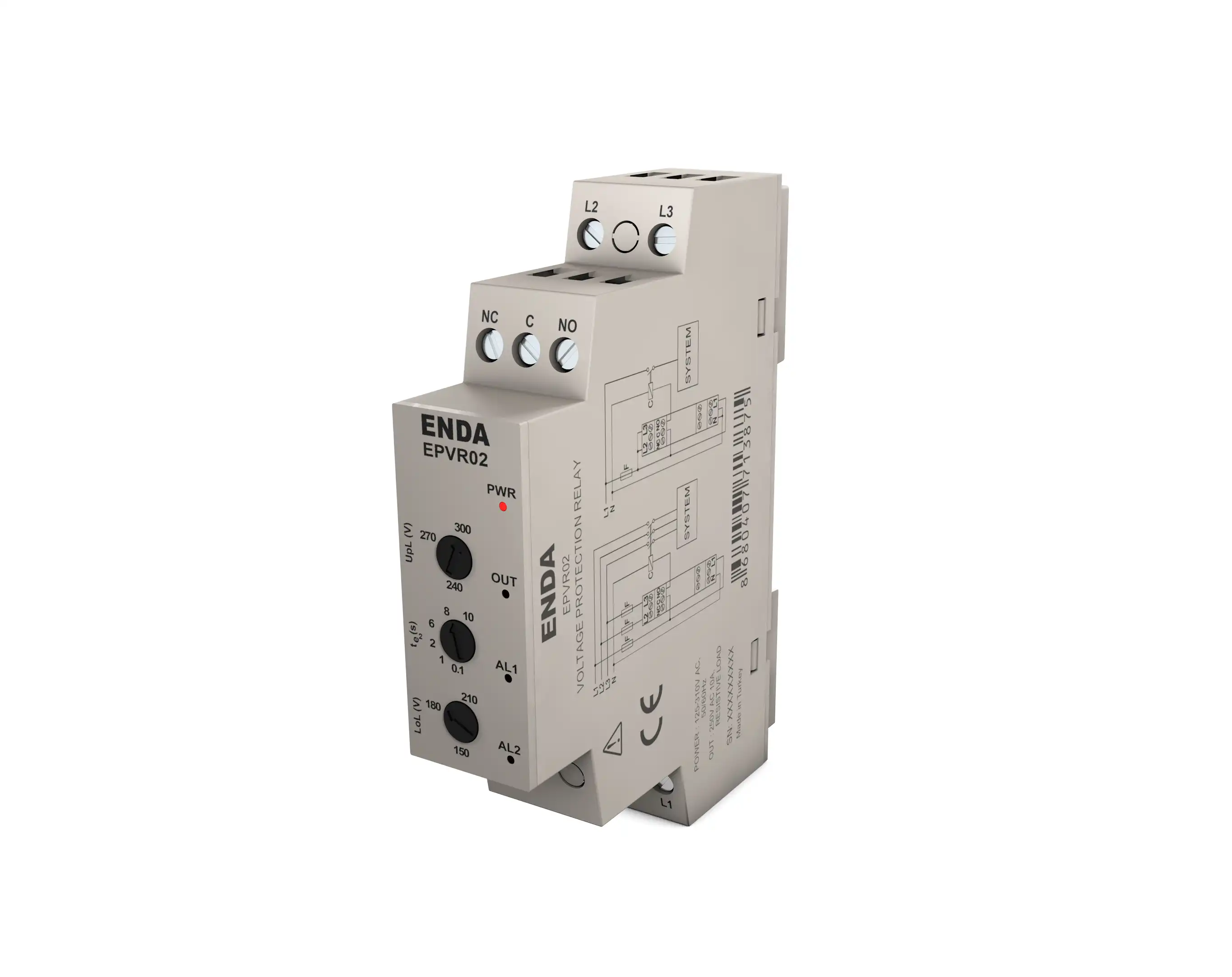

    EPVR02

    Single and Three Phase Voltage Control, Adjustable Voltage Set Value, Over-Low Voltage Protection Relay

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPVR02

    Single and three phase voltage control

    Phase failure protection

    Phase sequence protection

    Adjustable voltage protection

    Over and/or under voltage protection

    Contact output (OUT) for system control

    Rail-mounted, terminal connection

    CE marked according to EN standards

    Operating/Storage Temperature 0...+50 °C / -25...+70 °C
    Relative Humidity Up to 31 °C 80%, then decreasing linearly to 50% at 40 °C
    Protection Class According to EN 60529 standard: IP20
    Altitude Maximum 2000m
    Supply Voltage 125-410V AC +10% -10%
    Operating Frequency 45-65Hz
    Power Consumption Maximum 10VA
    Connection Screw terminal
    Reset Time Maximum 0.01s
    Control Output (OUT) 250V AC, 10A (for resistive load), NO+NC
    Relay Life 10,000,000 operations unloaded; 50,000 operations at 250V AC, 10A for resistive load
    Control Output Status OUT LED lights up when the output is energized
    Mounting Type Mountable on TH35 type rail
    Dimensions W18 x H84 x D62 mm
    Weight Approximately 90g (including packaging)
    Housing Material Self-extinguishing plastics used
