    EF/EFM 500-900 Rope Enkoder

    EF/EFM 500-900 rope ENCODER is an optical principle for the incodal measurement of linear movements.Robust measurement wire made of stainless steel;It has easy installation features that are resistant to environmental factors.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

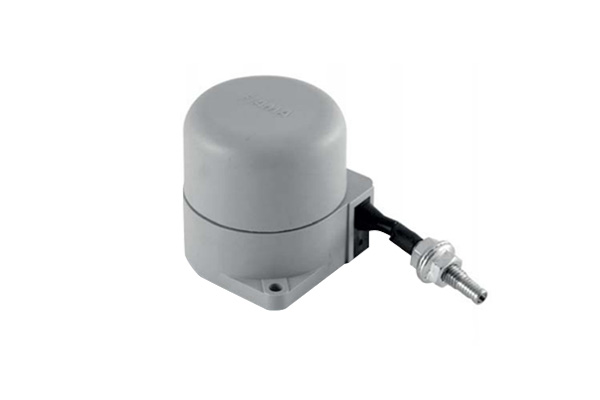

    EF/EFM 500-900 Rope Enkoder

    EF/EFM 500-900 rope ENCODER is the rope encoder for figremental measurement of linear movements.

    The EF model works with optical principle, the EFM model works with magnetic principle.

    It is insensitive to external factors such as dust, dirt, oil and sawdust thanks to a special sturdy body resistant to impacts.

    There are different stroke options in 500, 700 and 900 mm.

    It has a high resolution up to 10 µm.

    It can be easily assembled thanks to ready screw slots.

    There are different output options as Push-Pull or Line Driver (5 or 10-30 VDC).

    It has at least 400,000 rpm movement life.

    It has a measurement rope that is not intact.

    Resolution For optical EF model: ± 100 µm for magnetic EFM model: ± 10 µm
    Working temperature -10 ° C… +70 ° C
    Feeding voltage 10-30 VDC or 5 VDC
