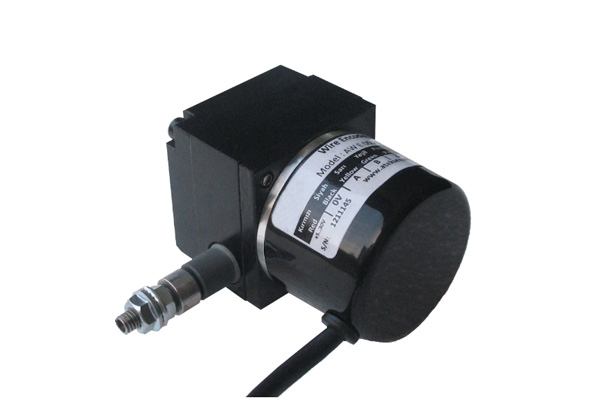

    Awe110 rope encoder

    Awe110 rope ENCODER has incremental measurement feature.Stainless stainless steel rope, anodized aluminum body, shock and vibration are resistant to being resistant.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Sonraki Ürün

    Awe110 rope encoder

    Awe110 rope encoder 0 ... 300 mm to 0 ... 1250 mm varies ranging from different strokes (measurement) lengths.

    There are 0.1 mm/pulse, 0.5 mm/pulse or 0.05 mm/pulse resolution options.

    Incremental output.

    Small structure.

    There is an IP65 protection class.

    Compact design.

    Easy to be installed.

    It has a maximum speed of 2 m/s.

    It is resistant to shock / vibration.

    It has an aluminum anodized body.

    Resolution 0.1 mm/pulse (standard), 0.2 mm/pulse, 0.05 mm/pulse
    Working temperature -20… +85 ° C
    Feeding voltage 5… 30V DC ± 20%
